In the field of rigging and lifting, selecting the right equipment is critical for ensuring safety and efficiency. Among the various components used in lifting setups, lifting shackle play a vital role in connecting chains, slings, and other lifting devices. Two common types of lifting shackles are screw pin shackles and bolt type shackles. Understanding the differences, advantages, and limitations of each type is essential for making informed choices when it comes to lifting operations. This article provides a comprehensive comparison of screw pin versus bolt type lifting shackles, helping operators select the best option for their needs.
Understanding Lifting Shackles
Lifting shackles are U-shaped devices with a pin or bolt that serves as a connector for lifting equipment. They are designed to provide strong, reliable connections between various components in a rigging setup. The primary function of a lifting shackle is to facilitate the lifting and moving of heavy loads safely. Shackles are constructed from high-strength materials, typically steel, and are available in various sizes and configurations, each suited to specific applications.
Types of Lifting Shackles
- Screw Pin Shackles: These shackles feature a pin that screws into the body of the shackle, creating a secure connection. The screw pin can be easily removed for quick attachment and detachment, making these shackles popular for many lifting applications.

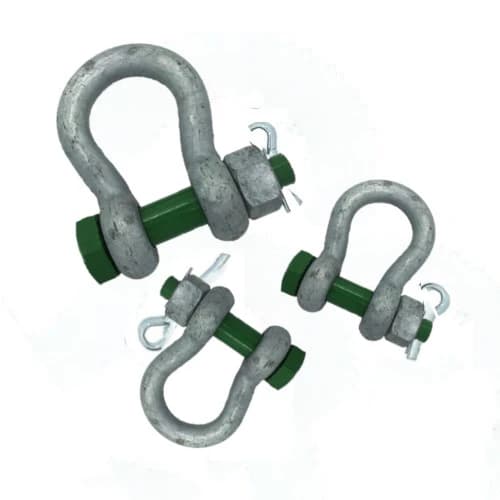

- Bolt Type Shackles: Bolt type shackles utilize a bolt and nut to secure the connection. This design provides a more permanent attachment compared to screw pin shackles, making them suitable for applications where security and stability are paramount.
Screw Pin Shackles: Features and Benefits
Screw pin shackles are widely used in various lifting applications due to their ease of use and versatility. Here are some key features and benefits of screw pin shackles:
1. Quick and Easy Attachment
One of the most significant advantages of screw pin shackles is their ease of use. The screw pin can be quickly threaded in and out, allowing for fast attachment and detachment of lifting equipment. This feature is particularly beneficial in situations where time is of the essence, such as in emergency lifting operations.
2. Lightweight Design
Screw pin shackles tend to be lighter than bolt type shackles, making them easier to handle and transport. Their reduced weight can contribute to overall efficiency in lifting setups, especially when multiple shackles are being used.
3. Versatility
Screw pin shackles are highly versatile and can be used in a wide range of applications, including construction, marine, and industrial settings. Their ability to accommodate various slings and lifting devices makes them a popular choice among riggers and operators.
4. Cost-Effectiveness
Generally, screw pin shackles are more cost-effective compared to bolt type shackles. Their simplicity in design and ease of manufacture can lead to lower prices, making them an attractive option for budget-conscious operations.
Limitations of Screw Pin Shackles
Despite their many advantages, screw pin shackles do have some limitations:
- Risk of Accidental Disconnection: While screw pin shackles are designed to stay securely in place, there is a slight risk of the pin loosening over time, especially under dynamic loading conditions. Operators must ensure that the pin is adequately tightened before each use.
- Less Suitable for Permanent Connections: Screw pin shackles are generally not recommended for applications that require a permanent connection. In situations where the shackle will remain attached for an extended period, a bolt type shackle may be more appropriate.
Bolt Type Shackles: Features and Benefits
Bolt type shackles offer a different set of features and benefits compared to screw pin shackles. Here are some key characteristics of bolt type shackles:
1. Enhanced Security
The primary advantage of bolt type shackles is their enhanced security. The bolt and nut configuration creates a more stable connection that is less likely to loosen over time. This feature makes bolt type shackles ideal for heavy-duty applications or situations where safety is paramount.
2. Permanent Attachments
Bolt type shackles are suitable for applications that require a more permanent attachment. Once secured, the bolt type shackle can remain in place without the risk of accidental disconnection, making it a reliable choice for long-term rigging setups.
3. Greater Load Capacity
In many cases, bolt type shackles can accommodate higher load capacities compared to screw pin shackles. This increased strength makes them suitable for lifting heavy equipment and loads that require additional safety margins.
4. Durability
Bolt type shackles are often constructed with thicker materials and are designed to withstand harsh conditions. Their robust construction enhances their durability and longevity, making them ideal for industrial and heavy-duty applications.
Limitations of Bolt Type Shackles
While bolt type shackles offer several advantages, they also come with limitations:
- Complexity of Use: The process of attaching and detaching bolt type shackles can be more time-consuming compared to screw pin shackles. The need for a wrench to secure the bolt can slow down operations, particularly in fast-paced environments.
- Increased Weight: Bolt type shackles tend to be heavier than screw pin shackles, which can impact their portability and ease of handling. This added weight may not be ideal for certain applications where lightweight equipment is preferred.
- Cost Considerations: Due to their more complex design and construction, bolt type shackles can be more expensive than screw pin shackles. This factor may influence purchasing decisions for budget-sensitive operations.
Choosing the Right Shackle for Your Application
When deciding between screw pin and bolt type lifting shackles, several factors should be considered to ensure the best fit for the specific application:
1. Load Requirements
Evaluate the load requirements for the lifting operation. If the application involves heavy loads or requires a permanent connection, bolt type shackles may be the better choice. Conversely, for lighter loads or situations requiring quick attachment, screw pin shackles may suffice.
2. Frequency of Use
Consider how frequently the shackles will be used. If quick and frequent attachment and detachment are necessary, screw pin shackles may offer the ease of use needed for efficiency. For infrequent or permanent connections, bolt type shackles may provide the necessary stability.
3. Operating Environment
The environment in which the shackles will be used can influence the choice. In harsh conditions, such as marine or industrial settings, bolt type shackles may offer greater durability and resistance to wear. Alternatively, screw pin shackles can be suitable for lighter applications in controlled environments.
4. Safety Considerations
Safety should always be a top priority in lifting operations. If there are concerns about accidental disconnection or the need for enhanced security, bolt type shackles may provide the peace of mind necessary for operators.
Conclusion
When it comes to lifting operations, selecting the right type of lifting shackle is essential for ensuring safety and efficiency. Both screw pin and bolt type lifting shackles offer unique features and benefits that cater to different applications. Screw pin shackles excel in ease of use, lightweight design, and cost-effectiveness, making them suitable for quick and versatile operations. On the other hand, bolt type shackles provide enhanced security, durability, and load capacity, making them ideal for heavy-duty and permanent connections.
Ultimately, the choice between screw pin and bolt type shackles depends on the specific requirements of the lifting operation. By considering factors such as load requirements, frequency of use, operating environment, and safety considerations, operators can make informed decisions to optimize their lifting setups.
For those seeking high-quality lifting equipment, including screw pin and bolt type shackles, look no further than UK Lifting Store. Explore our extensive range of products and take the first step toward ensuring the safety and efficiency of your lifting operations. Your success begins with the right tools!
