A muffle furnace is an essential piece of laboratory equipment used for high-temperature heating. It is widely used in industries like ceramics, metallurgy, pharmaceuticals, and research labs. Known for its ability to maintain precise temperatures and isolate the specimen from combustion materials, a muffle furnace plays a vital role in processes like ashing, heat treatment, material testing, and more.
In this blog, we’ll explore what a muffle furnace is, its working principle, a typical muffle furnace diagram, and key factors affecting the muffle furnace price.

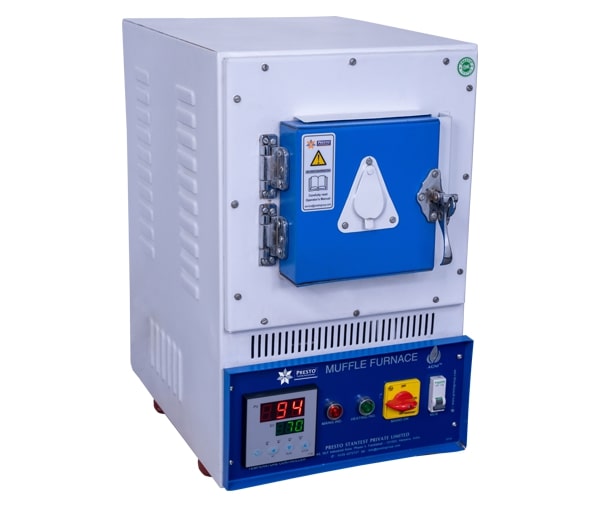

What is a Muffle Furnace?
A muffle furnace is a box-type high-temperature oven used for material testing, incineration, and other thermal processing tasks. It operates at temperatures ranging from 800°C to over 1800°C, depending on the model. Unlike conventional furnaces, a muffle furnace keeps the sample separated from the fuel or heating elements, ensuring contamination-free heating.
It gets its name from the “muffle” — a chamber that isolates the material being processed from direct contact with the flame or heating source. The heating elements are typically embedded in the insulation surrounding the inner chamber, which evenly radiates heat to the sample.
Muffle Furnace Working Principle
Understanding the muffle furnace working principle helps in its effective application across industries. At its core, the furnace uses electric resistance heating. When powered on, electric current passes through heating elements (usually made of Kanthal or silicon carbide), converting electricity into heat.
This heat is transferred to the insulated chamber, and eventually to the sample placed inside the crucible or ceramic tray. The enclosed heating eliminates direct contact between the heating elements and the material, thus minimizing contamination and maximizing temperature uniformity.
The furnace’s temperature is controlled using programmable temperature controllers, which help in ramping up, holding, and cooling down the furnace according to specific testing needs.
Muffle Furnace Diagram
A simplified muffle furnace diagram includes the following components:
- Outer Casing: Made from corrosion-resistant metal, it holds all internal components.
- Insulated Chamber: Typically lined with ceramic fiber insulation to retain heat.
- Heating Elements: Placed around the insulation to provide uniform heat distribution.
- Muffle Chamber: The inner box where samples are placed, ensuring no direct contact with heating coils.
- Thermocouple & Temperature Controller: Measures and regulates internal temperature.
- Door with Safety Lock: Ensures safe loading/unloading and reduces heat loss.
This layout allows consistent and uniform heating while ensuring the safety and integrity of both users and materials.
Muffle Furnace Price: What Influences the Cost?
The muffle furnace price can vary based on several factors, including:
- Temperature Range: Higher temperature models (above 1200°C) cost more due to advanced materials and engineering.
- Chamber Size: Larger capacity furnaces for bulk testing are more expensive.
- Automation & Control Systems: Furnaces with digital PID controllers, programmable features, and safety alarms have a higher price.
- Material Quality: Use of premium insulation and heating elements increases durability and cost.
- Brand & Certifications: Reputed manufacturers offering calibration and safety certifications may charge a premium.
In India, basic laboratory muffle furnaces may start around ₹25,000, while high-end industrial models can go up to ₹2,00,000 or more.
Conclusion
Whether you're in research, manufacturing, or quality testing, a muffle furnace is an indispensable tool for high-temperature applications. With an understanding of the muffle furnace working principle, the structural layout shown in a muffle furnace diagram, and knowledge of factors affecting muffle furnace price, you can make an informed decision before purchasing one.
Always choose a model that suits your specific needs and comes with reliable safety features and service support to ensure long-term performance.
