In the involved world of electrical engineering, using the analogy of the car, there exist the components that work under the hood and whose valuable role is only noticed when something breaks. It is one such vehicle, and the fuse is one of them. It is a background star, an uncelebrated unsung hero to millions of electrical circuits, the simplest and the most complex of household appliances, and industrial machinery.
The original purpose of its design may prove to be more deceiving than it may be at first sight: it protects an electrical circuit by opening the circuit in the event of excessive current flowing. To gain a clearer understanding of the modern fuse, we need to look beyond its single-end aspect and examine the core parameters that govern its operation, as well as what defines its use.
The Unsung Hero
This is an exploration into the core of electrical safety, a dive into the engineering that enables our powered world to exist. A conductor is the most essential part of a fuse, known as a fuse link, which is specifically designed to protect the fuse. It is usually an alloy of a particular metal, designed to melt and disconnect the current in a specific current and a given time. The fuse link manufacturers carefully compute the material, shape and size used, to ensure they will perform predictably and dependably. And here the magic takes place.
The Heart of the Fuse

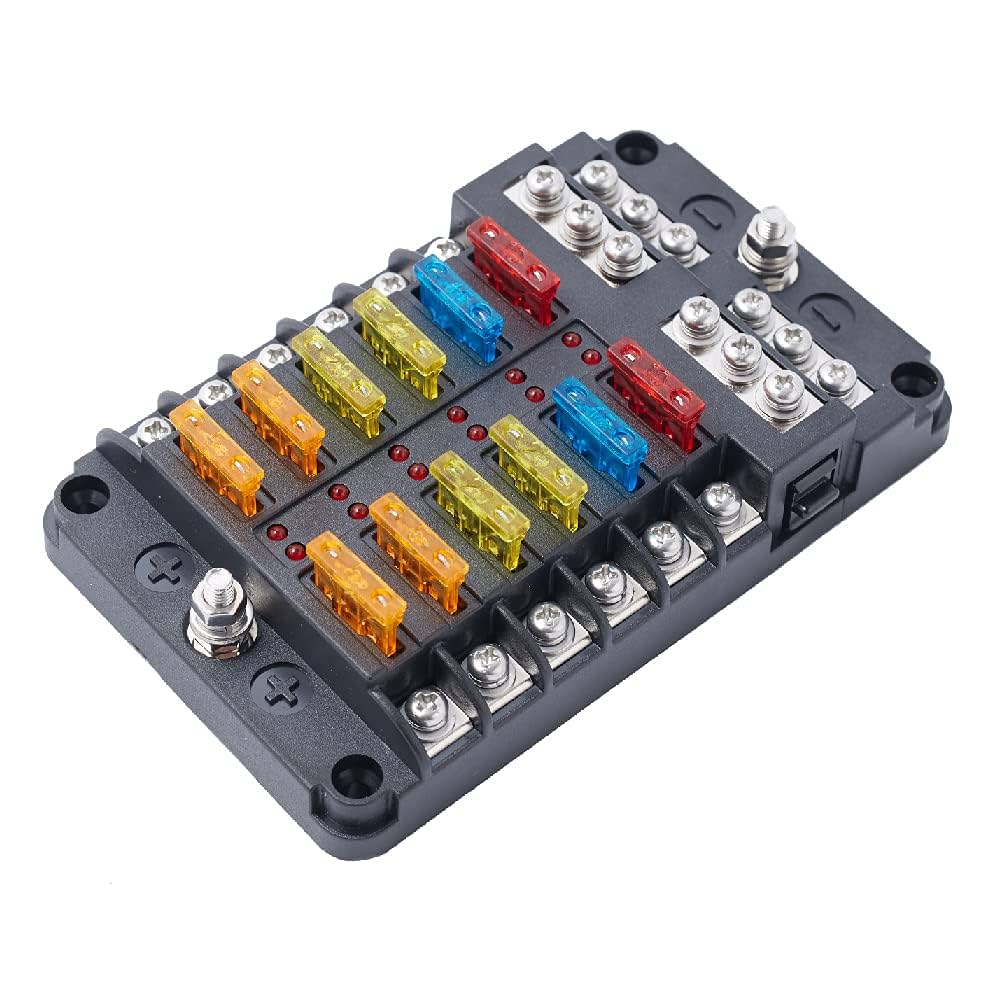

It's a safety gadget with a difference; a fine-tuned one at that. The first object under consideration that helps one understand and admire the complexity of this simple component is to know the nature of the fuse link. The fuse block is another key component of the entire system of fuse. This is the physical housing in which the fuse link is inserted and where electrical connections are required to be provided. The fuse block has more than a holder role; it is a component of the safety system. It also supports the heat and possible arc that occur when a fuse blows, thereby preventing the possibility of a fire or harm to nearby parts.
More Than Just a Holder
A secure connection is guaranteed by the right fuse block, which does not have loose contacts that may cause arcing or overheating, both of which can impair the integrity of the circuit. When it comes to any installation, selecting a fuse block that supports that particular fuse link, as well as the entire electrical system, is the key to safety and performance. The operating voltage of any fuse is the most basic parameter. A fuse is rated at a certain number of volts, and this figure should not be considered lightly. A given fuse is only effectively able to interrupt a current at or below its rated voltage.
The Voltage Barrier
When a fuse is applied to a circuit operating at a higher voltage, the melting fuse link may not be extinguished. This may cause the arc to self-sustain, with possible short circuiting, fire, and severe damage to the equipment and the fuse block itself. Hence, you will find either car or auto fuse(12V) and industrial fuses (hundreds and thousands of volts). Then comes the operating current or the ampere rating.
The Current Factor
It is the most widespread parameter that is known to the population. The rating scale of a fuse indicates the maximum operating current it can sustain continuously before blowing. This plays a decisive role in circuit (protection). The fuse must be selected at a rating small enough to accommodate normal operating current in the circuit, but less than the current at which damage to the circuit could occur. The wrongly sized fuse may blow before it is supposed to when it is working normally, or fail to protect the circuit in case of an overcurrent condition, resulting in a critical failure.
