In our increasingly interconnected world, Universal Serial Bus (USB) has become the ubiquitous standard for connecting a vast array of peripheral devices, from industrial sensors to medical instruments and consumer electronics. Its convenience, however, often overlooks a critical challenge: ensuring robust electrical isolation between connected systems. Electrical noise, ground potential differences, and transient voltage spikes can compromise data integrity, damage sensitive equipment, and even pose safety risks.
This is where specialized components like the ADUM3160BRWZ-RL from Analog Devices Inc. step in. More than just a component, it’s a critical enabler for reliable and safe USB communication in demanding environments. Utilizing Analog Devices’ renowned iCoupler® technology, the ADUM3160BRWZ-RL serves as a powerful USB port isolator designed to protect and enhance the performance of low-speed and full-speed USB compatible peripheral devices. This guide will delve into its capabilities, the underlying technology, and its wide-ranging applications, providing a comprehensive understanding of why this digital isolator is a cornerstone for high-performance designs.
1. Introducing the ADUM3160BRWZ-RL: Analog Devices’ USB Solution

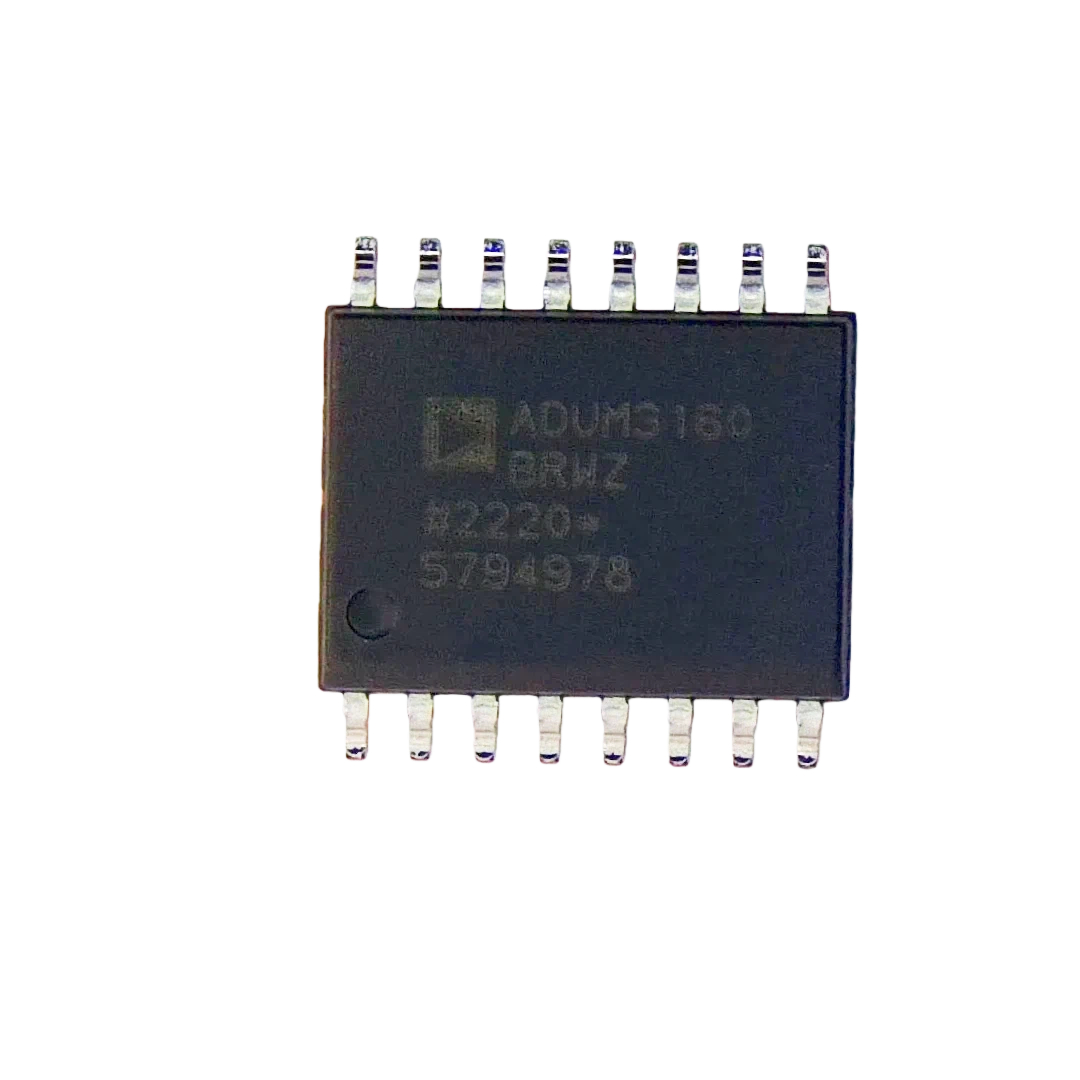

The ADUM3160BRWZ-RL stands out as a dedicated USB port isolator , engineered by Analog Devices to deliver superior isolation for a wide range of applications. It leverages a sophisticated combination of high-speed CMOS and monolithic air core transformer technology, distinguishing it from traditional, often slower, optocoupler-based isolation methods . This integration results in an isolation component that boasts not only high performance but also exceptional reliability.
Key attributes that define the ADUM3160BRWZ-RL include:
- Robust Isolation Voltage:It provides a formidable 2500Vrms isolation rating, ensuring a strong dielectric barrier against significant voltage differentials between the USB host and peripheral sides. This level of isolation is crucial for safety and reliability in critical systems.
- High Data Rate Compatibility: The device is meticulously designed to support both low-speed (1.5 Mbps) and full-speed (12 Mbps) USB data rates. This compatibility makes it an ideal choice for a broad spectrum of USB peripheral devices that operate within these speed ranges, maintaining data integrity without compromising performance.
- Exceptional Common-Mode Transient Immunity (CMTI): With a CMTI of 2 5 kV/µs, the ADUM3160BRWZ-RL can effectively reject large, fast-changing voltage transients that can corrupt data or damage non-isolated systems. This feature is particularly valuable in electrically noisy environments where transient events are common.
- Seamless Integration:Packaged in a compact 16-SOIC (0.295″, 7.50mm Width) form factor, the ADUM316 0BRWZ-RL is designed for easy integration into existing circuit designs, minimizing board space requirements and simplifying the development process.
By integrating these advanced features, the ADUM3160BRWZ-RL ensures that USB communication remains reliable and secure, even when operating in electrically harsh or safety-critical environments. It acts as an invisible guardian, allowing data to flow freely while preventing detrimental electrical interference from crossing the isolation barrier.
