Understanding Amperage in Level 2 EV Charging: What You Need to Know
Introduction
As a leading EV charger manufacturer in China, LiCB Charge delivers dependable AC and DC electric vehicle charging stations along with comprehensive charging solutions.
As electric vehicle (EV) adoption surges, more homeowners and businesses are exploring the installation of Level 2 charging stations. A key question often arises: How many amps does a Level 2 EV charger need?
Understanding amperage is essential—not just for charging speed, but also for ensuring your electrical system can handle the load safely and efficiently. This guide breaks down what amps are, how they relate to EV charging, how to choose the right amp rating for your needs, and what to consider during installation—whether for a home garage or a commercial site.
What Are Amps, and Why Do They Matter?
Amps, short for amperes, measure the flow of electrical current. Imagine electricity like water in a pipe:
- Volts = water pressure
- Amps = how much water is flowing
- Watts = the total power, calculated by volts × amps
In EV charging, the amp rating determines how much current is delivered to your car’s battery. More amps generally mean faster charging—but only if your EV and your electrical system can handle it. Understanding this relationship helps you find the right balance between speed, cost, and safety.
Level 2 Charging Basics
Level 2 chargers operate at 240 volts—twice the voltage of a standard home outlet. They typically deliver between 15 and 80 amps of current.
- Portable Level 2 chargers: Usually capped at 32 amps
- Hardwired Level 2 chargers: Can deliver up to 80 amps
By contrast, Level 1 chargers (plugged into 120V outlets) deliver only 12–16 amps—resulting in much slower charging speeds.
Charging Speed: How Fast Is Level 2?
Charging speed depends on both amperage and voltage. Here’s what you can expect:
AmpsPower (kW)Approx. Range Added/Hour16A~3.8 kW12–15 miles32A~7.7 kW~25 miles40A~9.6 kW~30 miles80A~17.2 kWUp to 52 miles
Note: Your EV’s onboard charger limits how much power it can accept. Even with a high-amp charger, your car may cap the actual charging speed.
Choosing the Right Amp Rating for Home Charging
Selecting the ideal amp rating depends on three key factors:
1. Your Vehicle’s Charging Capability
Check your EV’s maximum AC charging rate. For example, if your EV accepts up to 40 amps, using an 80-amp charger won’t increase the charging speed.
2. Your Driving Habits
- Short commutes: A 16A or 24A charger may be sufficient.
- Longer distances or multiple EVs: A 32A or 40A charger provides faster, more flexible charging.
3. Your Home’s Electrical Capacity
A Level 2 charger needs a dedicated 240V circuit, sized appropriately for the charger's amperage. The National Electrical Code (NEC) requires circuits for continuous loads (like EV chargers) to be rated at 125% of the load:
- 40A charger → 50A circuit
- 80A charger → 100A circuit
An electrician can assess your panel's capacity and determine if upgrades are needed.
Example: Charging Time Calculation
Let’s say you have a 32A charger at 240V:
- Power: 32A × 240V = 7.7 kW
- Charging speed: ~25 miles of range per hour
If you drive 50 miles per day, it would take about 2 hours to recharge your EV.
Compare this to a 16A charger delivering 3.8 kW—it would take twice as long to achieve the same range.
Installation Considerations

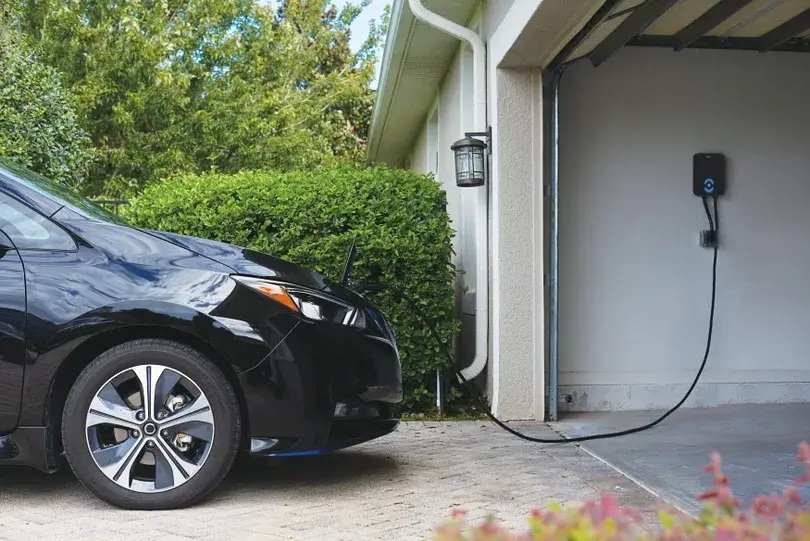

For Home Installations:
- Dedicated 240V Circuit: Avoid sharing with other appliances.
- NEMA 14-50 Outlet or Hardwired: Plug-in models offer flexibility, while hardwired versions may support higher amps.
- Indoor vs. Outdoor: Use weather-rated chargers for outdoor setups.
Depending on your home’s capacity, a panel upgrade or new subpanel may be required.
For Commercial Installations:
- Load Assessment: Ensure the building’s electrical system can support multiple chargers.
- Future Expansion: Install extra conduit or panel space now to accommodate future demand.
- Smart Load Management: Use software to balance power between chargers and manage energy costs.
- Utility Coordination: Work with local providers on rebates, demand charges, and peak usage planning.
Compliance and Safety
All installations must follow NEC and local building codes, including:
- Correct wire gauge
- Proper circuit breaker sizing (per 80% load rule)
- GFCI protection for outdoor use
- Weatherproof housing for outdoor units
- Secure wire routing and support
Improper installation can lead to fire risks, voided warranties, or insurance complications.
Future-Proofing Your Charging Setup
Even if you’re starting with a lower-amp charger, consider installing a higher-capacity circuit now. For example, using a 50A circuit with a 32A charger allows for easy upgrades later, avoiding costly rewiring when you switch to a higher-capacity EV.
Cost Considerations
Higher-amp chargers typically come with higher costs—both for the unit and installation. Factors include:
- Thicker wires
- Larger breakers
- Possible panel upgrades
Getting quotes from licensed electricians and exploring rebates or tax credits can help manage costs.
Key Takeaways
- Amps = Charging Speed: More amps mean faster charging—but only if your EV supports it.
- Level 2 Chargers Range from 15A to 80A: Offering 10–52 miles of range per hour.
- Choose Wisely: Consider your EV, driving needs, and home capacity.
- Safe Installation Is Essential: Always use a licensed electrician and follow code.
- Think Ahead: Installing a higher-rated circuit today can simplify future upgrades.
Conclusion
Installing a Level 2 EV charger at home or work makes owning an electric vehicle more practical and future-ready. By understanding amperage and your system's capacity, you can choose a charger that balances speed, safety, and cost.
Before you buy, consult with a licensed electrician and your utility company to evaluate your needs—and don’t forget to check for incentives that could lower your total installation cost.
With the right setup in place, you’ll enjoy faster, more reliable EV charging—keeping your vehicle ready for whatever’s next. Know more about Google SEO Directory
