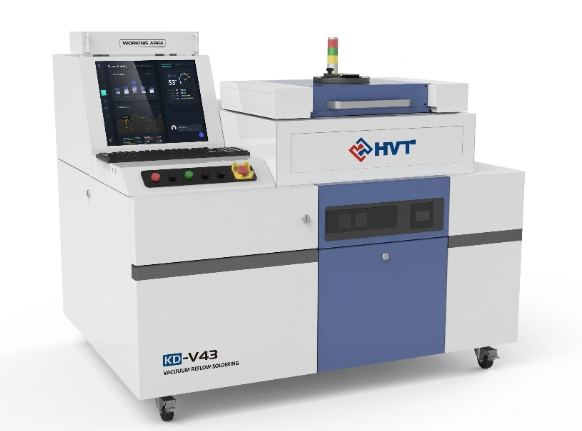

Vacuum soldering ovens are vital equipment in the semiconductor manufacturing process, especially in the packaging of power devices. These machines use a vacuum environment to ensure precise soldering, eliminating air contamination that could compromise the quality of the solder joints. For businesses like Chengliankaida Technology Co., Ltd., which specializes in high-tech vacuum welding machines and production lines, maintaining this equipment is crucial for delivering high-quality solutions to their clients. Here, we will explore effective maintenance practices to help maintain your vacuum soldering oven and ensure optimal performance.
Understanding the Importance of Regular Maintenance
Before delving into specific maintenance tips, it is essential to understand why regular maintenance of a vacuum soldering oven is necessary. A vacuum soldering oven is a sophisticated piece of equipment with a variety of components that need to function seamlessly to ensure high-quality soldering. Regular maintenance not only extends the lifespan of the oven but also improves its efficiency, reduces downtime, and minimizes the likelihood of defects in your semiconductor packaging.
Key Benefits of Maintaining a Vacuum Soldering Oven:
- Enhanced Performance: Properly maintained ovens ensure that soldering processes occur under optimal conditions, reducing the likelihood of defects like voids or inconsistent solder joints.
- Increased Lifespan: Regular checks and cleaning prevent wear and tear on critical components, extending the life of the oven.
- Reduced Costs: Preventative maintenance reduces the need for costly repairs and replacements.
- Consistency: Consistent performance results in high-quality products, increasing customer satisfaction.
Daily Maintenance Practices for a Vacuum Soldering Oven
A daily maintenance routine is essential for ensuring that your vacuum soldering oven operates at peak performance. This includes cleaning and monitoring key components that directly impact the quality of the soldering process.
1. Clean the Chamber and Door Seals
The vacuum chamber and door seals play a significant role in maintaining a consistent vacuum. Dirt, dust, and residue can create air leaks or affect the vacuum’s efficiency. Always ensure that the chamber and door seals are clean and free from any debris. Wipe down surfaces with a clean, dry cloth, and inspect seals for any signs of wear. If necessary, replace them to avoid leaks.
2. Check the Vacuum Pump
The vacuum pump is the heart of the vacuum soldering oven, and its performance directly affects the quality of the soldering process. Check the pump daily for any signs of irregular sounds or vibrations that may indicate mechanical issues. Ensure the pump’s filters are clean, as clogged filters can reduce the efficiency of the pump. Replace filters regularly as recommended by the manufacturer.
3. Monitor Temperature and Pressure Sensors
Consistent temperature and pressure are critical to achieving perfect solder joints. Regularly check the temperature and pressure sensors to ensure they are functioning accurately. If the readings fluctuate or are inaccurate, recalibrate or replace the sensors to prevent issues during the soldering process.
Weekly Maintenance Tips for Vacuum Soldering Ovens
In addition to daily checks, weekly maintenance is essential to address components that require more attention.
1. Inspect Electrical Components
Electrical components, such as circuit boards and power supplies, should be inspected weekly for any signs of wear or damage. Check for any loose connections or signs of overheating, as these could lead to performance issues or even failure of the oven. If you notice any irregularities, contact your maintenance team to address the problem before it becomes more severe.
2. Clean the Air Filters and Fans
Air filters and cooling fans help regulate the temperature inside the oven. Over time, these components can accumulate dust, dirt, and grease. Clean the air filters and fans to ensure they are working efficiently and that the temperature inside the oven remains consistent.
3. Check Gas Supply System
If your vacuum soldering oven uses an inert gas like nitrogen to prevent oxidation during the soldering process, inspect the gas supply system. Ensure that the gas pressure is stable and that there are no leaks in the lines. This will help avoid issues such as oxidation or contamination during soldering.
Monthly Maintenance Checks
Monthly maintenance involves more detailed inspections and adjustments, which are crucial to ensure the long-term reliability of the oven.
1. Inspect and Calibrate Temperature Control System
The temperature control system ensures that the oven heats up to the desired temperature for the soldering process. Over time, these systems may drift, causing inaccurate readings. Perform a full calibration of the temperature control system monthly to ensure the oven is heating to the proper temperatures.
2. Check for Leaks in the Vacuum System
Leakages in the vacuum system can reduce the efficiency of your soldering process and lead to poor-quality solder joints. Perform a thorough leak test to check the entire vacuum system for any potential leaks. Use a helium leak detector if available to identify small leaks.
3. Inspect Soldering Elements and Fixtures
Inspect the soldering elements and fixtures for wear and tear. Replace any worn-out components to ensure consistent soldering quality. Over time, soldering tips and fixtures can become worn or clogged, which may affect soldering precision.
Yearly Maintenance Tasks for Vacuum Soldering Ovens
Although annual maintenance tasks are less frequent, they are critical to maintaining the overall performance of the oven.
1. Perform a Complete Overhaul of the Vacuum Pump
A complete overhaul of the vacuum pump is necessary at least once a year to ensure it operates at its maximum efficiency. This includes replacing worn seals, cleaning internal components, and checking the lubrication levels.
2. Replace Expired Gaskets and Seals
Gaskets and seals can degrade over time, especially in high-temperature environments. Annually check all seals and gaskets in the vacuum chamber and replace those that are showing signs of wear. This will prevent air leaks and maintain the integrity of the vacuum environment.
3. Conduct an Electrical System Review
Ensure that the electrical system, including wiring, circuit boards, and connections, is checked and tested for any signs of corrosion or wear. Replace any damaged components to avoid downtime or equipment failure.
Conclusion: Ensuring the Longevity of Your Vacuum Soldering Oven
Maintaining your vacuum soldering oven is crucial to ensuring optimal performance and preventing costly repairs. By following a consistent maintenance routine, including daily, weekly, monthly, and yearly checks, you can significantly extend the lifespan of your equipment and enhance the efficiency of your soldering processes. For companies like Chengliankaida Technology Co., Ltd., whose products rely on advanced vacuum soldering technology for power device packaging, these maintenance practices are essential for ensuring high-quality products and customer satisfaction.
By investing in regular maintenance, you’re not just extending the life of your vacuum soldering oven; you’re also ensuring that your equipment is always ready to meet the demands of the semiconductor industry.
