Pneumatic Ball Valves: Operation, Components, and Maintenance Best Practices
Introduction
At the forefront of control valve manufacturing in China, we offer exceptional valves and actuators crafted to power industries across the board.
Pneumatic ball valves are critical components in fluid and gas control systems, providing efficient and reliable flow regulation. These valves use a rotating ball to control the passage of media and are operated by pneumatic actuators, which convert compressed air into mechanical motion. Known for their speed, durability, and cost-effectiveness, pneumatic ball valves are widely used in industries such as chemical processing, water treatment, oil and gas, and manufacturing.
This article provides an in-depth look at the structure, working principles, connection types, and maintenance considerations of pneumatic ball valves.

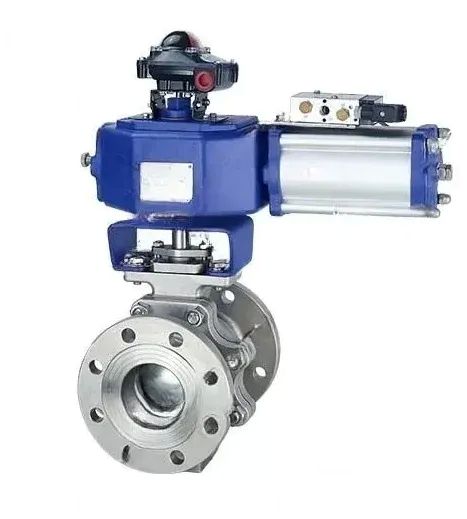

What Is a Pneumatic Ball Valve?
A pneumatic ball valve integrates two main parts:
- Ball Valve – Features a hollow, rotating ball with a bore. When aligned with the flow, the bore allows media to pass. When turned 90°, it blocks flow.
- Pneumatic Actuator – Uses compressed air to drive the valve open or closed.
There are two actuator types:
- Single-Acting – Uses air to move in one direction, with a spring to return the valve to its default position (fail-safe).
- Double-Acting – Uses air pressure for both opening and closing, allowing more precise control.
Advantages:
- Fast operation
- Suitable for high-pressure/high-temperature conditions
- Lower cost than electric actuators, especially for larger valves
Key Components
- Pneumatic Actuator
- Mounted on the valve using ISO 5211-compliant flanges, actuators vary by size and type (spring-return or double-acting).
- Ball Valve
- The core of the system, with a rotating ball that opens or shuts off flow.
- ISO 5211 Flange
- Ensures standardization and compatibility between valve and actuator (e.g., F03, F04, F05 sizes).
- Springs & Seals
- Critical for sealing and actuation performance. In single-acting actuators, springs return the valve to its original position when air is removed.
Common Connection Types
- Flanged – Bolted flanges with gaskets; easy to install and remove.
- Threaded – Compact and suitable for small systems.
- Tri-Clamp – Tool-free, hygienic connection ideal for food and pharmaceutical use.
- Wafer Type – Sandwiched between two flanges; cost-effective and space-saving.
- Welded – Permanent, leak-proof connection for high-pressure systems.
How Pneumatic Ball Valves Work
- Open Position: The actuator turns the ball to align the bore with the pipeline, allowing flow.
- Closed Position: The ball rotates 90°, blocking the flow path.
This simple yet effective mechanism makes pneumatic ball valves ideal for both on/off and modulating service.
Installation Considerations
- Environmental Factors
- Confirm material and pressure-temperature ratings match process conditions. Handle lubricants and chemicals with appropriate PPE.
- System Compatibility
- Ensure correct sizing, flange fitment, and that seals/gaskets match your application.
- Serviceability
- Plan for maintenance access. Use ISO 5211 mounting for actuator interchangeability and ease of disassembly.
Maintenance & Troubleshooting Tips
1. Regular Inspection
Check for corrosion, leaks, and wear. Early detection prevents failure and unplanned downtime.
2. Leak Detection
Inspect seals and joints for leaks. Replace damaged parts or tighten fittings as needed.
3. Lubrication
Use compatible lubricants on actuator components to ensure smooth performance and prevent jamming.
4. Clean Air Supply
Use dry, filtered compressed air to prevent contamination damage. Monitor supply pressure to match actuator specs.
5. Troubleshooting
For actuator or valve malfunctions:
- Check air pressure and source
- Inspect actuator piston/cylinder
- Look for valve blockage or foreign materials
Always consult the manufacturer's manual and avoid forcing a faulty valve.
6. Proper Sizing
Avoid undersizing or oversizing. Correct sizing ensures performance and prevents strain on the actuator and valve body.
Conclusion
Pneumatic ball valves are a reliable, cost-effective solution for automated flow control across a wide range of industrial applications. Their simplicity, fast operation, and compatibility with compressed air systems make them a go-to choice for both new installations and system upgrades.
By following proper installation procedures, maintaining air quality, and conducting regular maintenance, you can extend the service life of your pneumatic ball valves while maximizing system efficiency and minimizing downtime.Know more about Google SEO Directory
