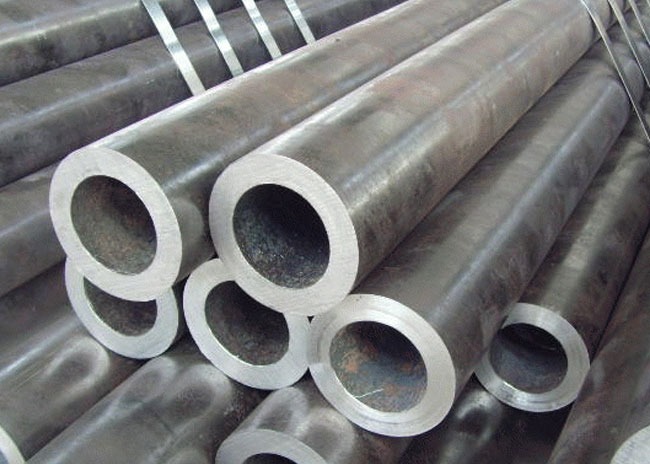

The SA 213 T91 tube is a widely recognized ferritic-martensitic alloy steel tube used extensively in high-temperature and high-pressure environments. Known for its exceptional strength, thermal stability, and corrosion resistance, it finds its place in industries such as power generation, petrochemical, oil and gas, and refineries. Manufactured under the ASTM A213/A213M specification, these tubes are mainly utilized in boilers, superheaters, and heat exchangers.
Chemical Composition of SA 213 T91 Tube
The performance characteristics of SA 213 T91 tubes are largely attributed to their balanced chemical composition. This alloy contains:
ElementComposition (%)Carbon (C)0.08 – 0.12Manganese (Mn)0.30 – 0.60Phosphorus (P)≤ 0.020Sulfur (S)≤ 0.010Silicon (Si)0.20 – 0.50Chromium (Cr)8.0 – 9.5Molybdenum (Mo)0.85 – 1.05Vanadium (V)0.18 – 0.25Niobium (Nb)0.06 – 0.10Nitrogen (N)0.03 – 0.07
The addition of chromium and molybdenum enhances oxidation resistance and creep strength, while vanadium and niobium contribute to grain refinement and structural stability at elevated temperatures.
Mechanical Properties
The SA 213 T91 tube is engineered to deliver excellent performance under mechanical stress. Its mechanical properties include:
- Tensile Strength: Minimum 585 MPa
- Yield Strength: Minimum 415 MPa
- Elongation: ≥ 20%
- Hardness: ≤ 250 HBW (Brinell)
These mechanical attributes make it a robust solution for environments where both high pressure and high temperature prevail.
Manufacturing Process
SA 213 T91 tubes are manufactured through seamless hot-finished or cold-drawn processes. The seamless construction ensures better strength and pressure resistance compared to welded tubes. Heat treatment, which involves normalizing, tempering, and quenching, ensures optimal hardness and microstructure refinement.
Key Features and Advantages
- Excellent High-Temperature Strength
- SA 213 T91 tubes maintain their structural integrity even in environments exceeding 600°C, making them ideal for superheater and reheater sections.
- Creep Resistance
- One of the key benefits of T91 material is its high resistance to creep, which is critical in boilers and pressure vessels under prolonged exposure to elevated temperatures.
- Corrosion and Oxidation Resistance
- The chromium content gives the tubes excellent oxidation resistance, while molybdenum offers improved resistance against pitting and crevice corrosion.
- Long Service Life
- The alloy’s strength and resistance to high-temperature fatigue extend the lifespan of components, reducing maintenance and downtime.
- Dimensional Stability
- SA 213 T91 tubes are known for retaining their shape and size, even after long-term service under varying thermal cycles.
Applications of SA 213 T91 Tubes
Due to their strength and high-temperature performance, SA 213 T91 tubes are found in:
- Thermal Power Plants – for use in superheaters, reheaters, and steam pipelines
- Petrochemical Plants – particularly in heat exchangers and reactor components
- Boiler Tubes – for high-efficiency boilers operating at high pressures
- Oil Refineries – in fluid catalytic cracking units and furnace systems
- Nuclear Power Plants – where structural stability under radiation and temperature stress is essential
Testing and Quality Assurance
To ensure compliance with industry standards and project requirements, SA 213 T91 tubes undergo rigorous testing such as:
- Hydrostatic Testing
- Flattening and Flaring Tests
- Hardness Test
- Ultrasonic or Eddy Current Testing
- Grain Size and Microstructure Analysis
These tests ensure mechanical integrity, corrosion resistance, and dimensional accuracy.
Heat Treatment Process
Heat treatment plays a vital role in enhancing the metallurgical structure of SA 213 T91 tubes. The standard heat treatment process involves:
- Normalizing at 1040–1080°C
- Air Cooling
- Tempering at 730–800°C
This treatment provides a tempered martensitic microstructure, giving the material its renowned creep resistance and mechanical strength.
Standards and Specifications
- Standard: ASTM A213 / ASME SA213
- Grade: T91
- Type: Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes
- Size Range: 1/4" NB to 6" NB (or as per client requirement)
- Wall Thickness: SCH 40, SCH 80, SCH 160, or custom
- Length: Single Random, Double Random, or Cut Length
Conclusion
The SA 213 T91 tube is a highly reliable, cost-effective solution for extreme temperature and pressure environments. With its unique alloy composition and excellent mechanical and chemical resistance properties, it plays a vital role in the safe and efficient operation of modern thermal and petrochemical plants. Whether it's a power generation facility or a high-pressure chemical process, T91 tubes offer durability, safety, and long-term performance—qualities that industries worldwide demand.
