Introduction

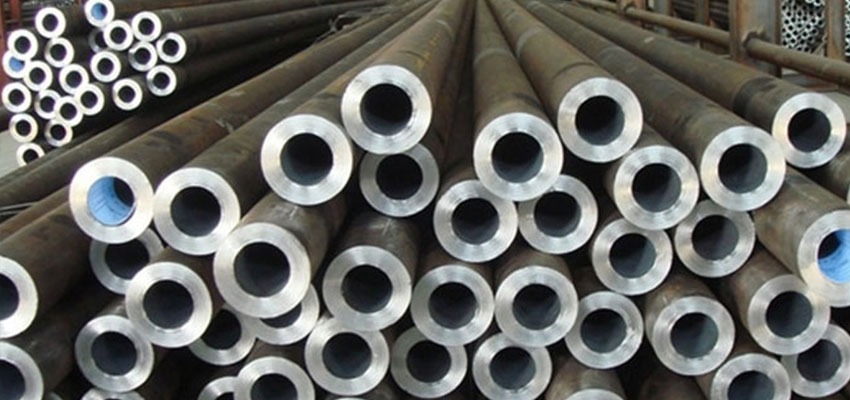

ASTM A335 P91 Pipes are a premium-grade alloy steel product designed for use in high-temperature and high-pressure environments. These seamless ferritic alloy-steel pipes fall under the ASTM A335 standard, which governs piping for elevated temperature service. Grade P91 is particularly known for its exceptional creep strength, oxidation resistance, and long-term thermal stability, making it indispensable in modern power plants, petrochemical refineries, and industrial steam systems.
What is ASTM A335 P91?
P91 is a modified 9Cr-1Mo alloy—a ferritic-martensitic steel with carefully balanced additives to enhance its mechanical and corrosion-resistant properties. Developed for ultra-supercritical boiler applications, it is commonly referred to as Grade 91 and is extensively used in piping systems that require prolonged exposure to extreme temperatures and pressures.
Chemical Composition
ElementComposition (%)Chromium (Cr)8.0 – 9.5Molybdenum (Mo)0.85 – 1.05Carbon (C)0.08 – 0.12Manganese (Mn)0.30 – 0.60Silicon (Si)0.20 – 0.50Phosphorus (P)≤ 0.02Sulfur (S)≤ 0.01Vanadium (V)0.18 – 0.25Niobium (Nb)0.06 – 0.10Nitrogen (N)0.03 – 0.07
This unique blend enhances high-temperature strength and resistance to thermal fatigue.
Key Properties of P91 Pipes
1. High Creep and Rupture Strength
P91 offers outstanding creep resistance, making it ideal for long-term service at temperatures above 600°C (1112°F).
2. Superior Thermal Stability
Its microstructure is optimized to retain strength and resist grain coarsening under prolonged thermal exposure.
3. Excellent Oxidation and Corrosion Resistance
The high chromium and molybdenum content provide strong resistance to oxidation and scaling in steam environments.
4. Weldability and Fabrication
P91 requires controlled welding and post-weld heat treatment (PWHT) to preserve its microstructure and performance integrity.
Mechanical Properties
PropertyValueTensile Strength≥ 585 MPa (85,000 psi)Yield Strength≥ 415 MPa (60,000 psi)Elongation≥ 20%Hardness (HBW)≤ 250 HB
These mechanical properties make P91 ideal for critical pressure-containing components.
Applications of ASTM A335 P91 Pipes
Owing to their exceptional performance in severe operating conditions, P91 pipes are extensively used in:
- Thermal and nuclear power plants
- Superheaters and reheaters
- High-pressure steam lines
- Boilers and heat exchangers
- Petrochemical processing units
- Refineries and oil & gas pipelines
Industry Standards and Compliance
- ASTM A335 / ASME SA335
- DIN EN 10216-2
- NACE MR0175 / ISO 15156 (when required)
P91 pipes must undergo rigorous quality tests such as:
- Ultrasonic testing (UT)
- Hydrostatic testing
- Hardness testing
- Tensile and impact testing
- Microstructure analysis
Advantages of Using P91 Pipes
- Longer lifecycle at elevated temperatures
- Reduced wall thickness compared to lower grades
- Improved efficiency in power generation systems
- Cost-effective for long-term high-pressure operation
- Reduced maintenance and downtime
Conclusion
ASTM A335 P91 Pipes are engineered to meet the demands of the most extreme industrial environments. With their high strength, heat resistance, and long-term stability, they form a critical component in the infrastructure of energy production, refineries, and chemical plants. For engineers and operators requiring high-performance alloy steel, P91 delivers durability, efficiency, and peace of mind.
