In heavy lifting and rigging operations, the equipment used is paramount to ensuring safety, efficiency, and the ability to handle complex tasks. One piece of equipment that plays a crucial role in such operations is the adjustable spreader beam. Whether lifting large equipment, beams, or other heavy loads, adjustable spreader beams are invaluable for distributing the load evenly and providing precise control.
But what exactly is an adjustable spreader beam, and why is it so important? This guide will explore its design, purpose, functionality, and applications to help you better understand this vital piece of lifting equipment.
What is an Adjustable Spreader Beam?

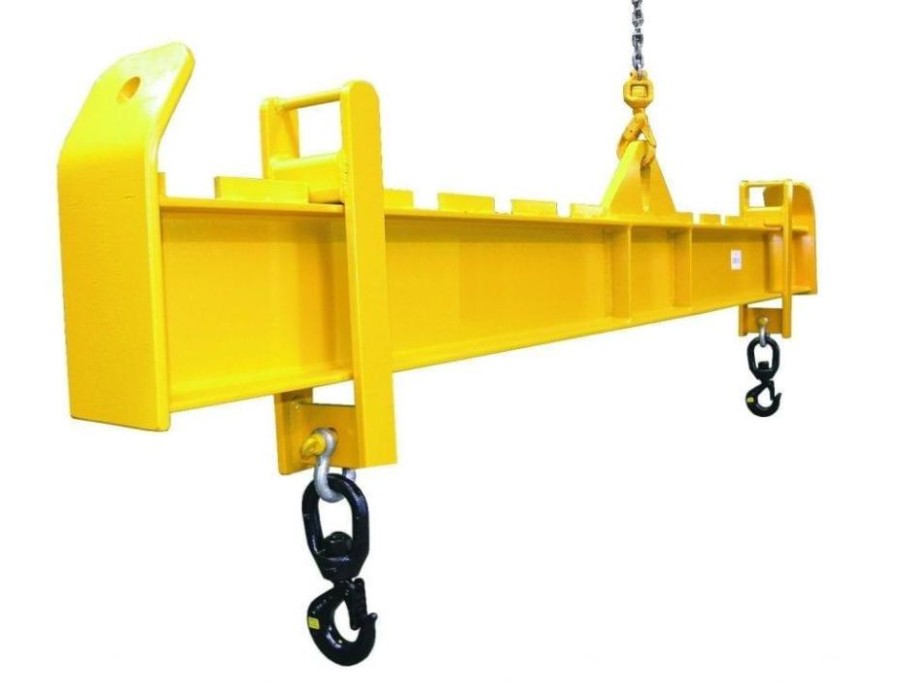

An adjustable spreader beam is a type of lifting device used in crane operations to lift and move heavy loads. It consists of a horizontal beam, usually made of steel or aluminum, that is fitted with adjustable components to change its span or width. These components help distribute the weight of the load evenly across the lifting points, thus preventing strain or damage to the equipment or the load being lifted.
The adjustable feature allows the beam to handle different sizes and shapes of loads, making it versatile for a wide range of lifting operations. By changing the span between the two lifting points, operators can better balance the load, which improves both safety and efficiency during operations.
Key Components of an Adjustable Spreader Beam
An adjustable spreader beam typically consists of the following components:
- Main Beam (Spreader Bar):
- The central horizontal component of the spreader beam that spans the distance between the load and the crane hook. This beam is the primary load-bearing part and is usually made of durable steel or aluminum.
- Adjustable Lifting Points:
- These are attachment points for lifting slings or other lifting devices. They can be moved along the beam to adjust the span according to the size of the load.
- End Fittings:
- The ends of the spreader beam often feature lifting eyes or shackles that connect to lifting slings or hooks. These fittings are designed for easy attachment to cranes or other lifting machinery.
- Adjustment Mechanism:
- This mechanism allows the operator to change the span of the beam. The beam can be adjusted to accommodate loads of various widths, making it a versatile solution for different types of lifting operations.
- Load Distribution Plates:
- In some models, the spreader beam may include additional plates that help to better distribute the weight of the load evenly across the beam.
How Does an Adjustable Spreader Beam Work?
An adjustable spreader beam works by using a combination of its adjustable span and load distribution capabilities to safely and efficiently lift and move heavy loads. Here's a breakdown of how it functions:
- Attachment to the Crane:
- The adjustable spreader beam is typically connected to a crane or hoist using a hook or shackle. The crane is used to lift the beam, and the beam is then positioned to lift the load.
- Load Adjustment:
- The beam's span is adjusted based on the size and shape of the load. The operator moves the lifting points along the beam to balance the load and ensure it is evenly distributed.
- Lifting and Moving the Load:
- Once the load is securely attached to the lifting points, the crane operator can lift the load while maintaining proper balance. The spreader beam keeps the load stable, preventing it from tipping or shifting during movement.
- Safety Considerations:
- The adjustable spreader beam helps improve safety by reducing the strain on the load, the crane, and the rigging components. It ensures that the load is lifted evenly, minimizing the risk of accidents or damage to the load.
Advantages of Using an Adjustable Spreader Beam
- Versatility:
- One of the primary advantages of an adjustable spreader beam is its ability to adapt to various load sizes. The adjustable span feature allows it to accommodate a wide range of loads, from small, narrow items to large, wide loads.
- Improved Load Control:
- By adjusting the span of the beam, operators can achieve better load control. This reduces the risk of the load tipping or swinging during lifting, which can improve safety and operational efficiency.
- Even Load Distribution:
- The adjustable spreader beam helps distribute the load evenly across the lifting points, reducing the risk of overloading any single point. This is especially important when lifting fragile or heavy objects that require a balanced lift.
- Increased Safety:
- The ability to adjust the span of the beam ensures that the load remains stable throughout the lifting process. This reduces the likelihood of accidents and enhances the overall safety of the lifting operation.
- Reduced Wear and Tear:
- Adjustable spreader beams help minimize wear and tear on rigging components. By properly distributing the weight, the beam prevents excessive stress on any one point, which can extend the lifespan of your rigging equipment.
Types of Adjustable Spreader Beams
Adjustable spreader beams can vary in design and function depending on the type of lifting operation. Here are some common types:
- Single Adjustable Spreader Beam:
- This is the most basic type, featuring a single horizontal beam with adjustable lifting points. It’s commonly used for lifting smaller loads that don’t require extreme adjustments.
- Double Adjustable Spreader Beam:
- This type has two adjustable horizontal beams, allowing for greater flexibility when lifting large or unusually shaped loads. Double adjustable spreader beams are commonly used in more complex rigging operations.
- Custom Adjustable Spreader Beams:
- Some operations may require custom-built spreader beams designed to handle specific load types, sizes, or weight capacities. Custom beams can be designed to accommodate unique lifting requirements.
Applications of Adjustable Spreader Beams
Adjustable spreader beams are used in a wide variety of industries and applications, including:
- Construction:
- Adjustable spreader beams are commonly used on construction sites to lift and move large building materials, such as steel beams, precast concrete elements, or large machinery.
- Shipping and Transport:
- In the shipping industry, these beams are used to load and unload large cargo from ships, containers, or trucks. The ability to adjust the beam’s span allows for flexibility when handling different load sizes.
- Oil and Gas:
- In the oil and gas sector, adjustable spreader beams are used for lifting heavy equipment, such as pumps, compressors, and generators. The adjustable nature ensures that the equipment can be lifted securely without damage.
- Manufacturing:
- Adjustable spreader beams are also used in manufacturing plants, particularly when moving large machinery or heavy components between production areas.
- Aircraft and Aerospace:
- The aerospace industry uses adjustable spreader beams to lift and transport aircraft parts, engines, or fuselage components.
Conclusion
An adjustable spreader beam is a critical piece of rigging equipment that provides versatility, safety, and load stability in lifting operations. Its ability to adjust to different load sizes and distribute weight evenly makes it invaluable in various industries, from construction to manufacturing.
By understanding the design, operation, and applications of an adjustable spreader beam, operators can ensure safer and more efficient lifting processes, ultimately contributing to the success of complex projects. Whether you’re handling small parts or massive industrial components, the adjustable spreader beam is an indispensable tool in modern heavy lifting.
