Introduction

Water scarcity is a growing concern worldwide, with industries being one of the largest consumers of freshwater. As industries expand, the demand for water increases, leading to higher costs and environmental strain. Implementing a Rainwater harvesting system in industries can significantly reduce dependency on municipal water supplies, lower operational costs, and contribute to sustainable water management.

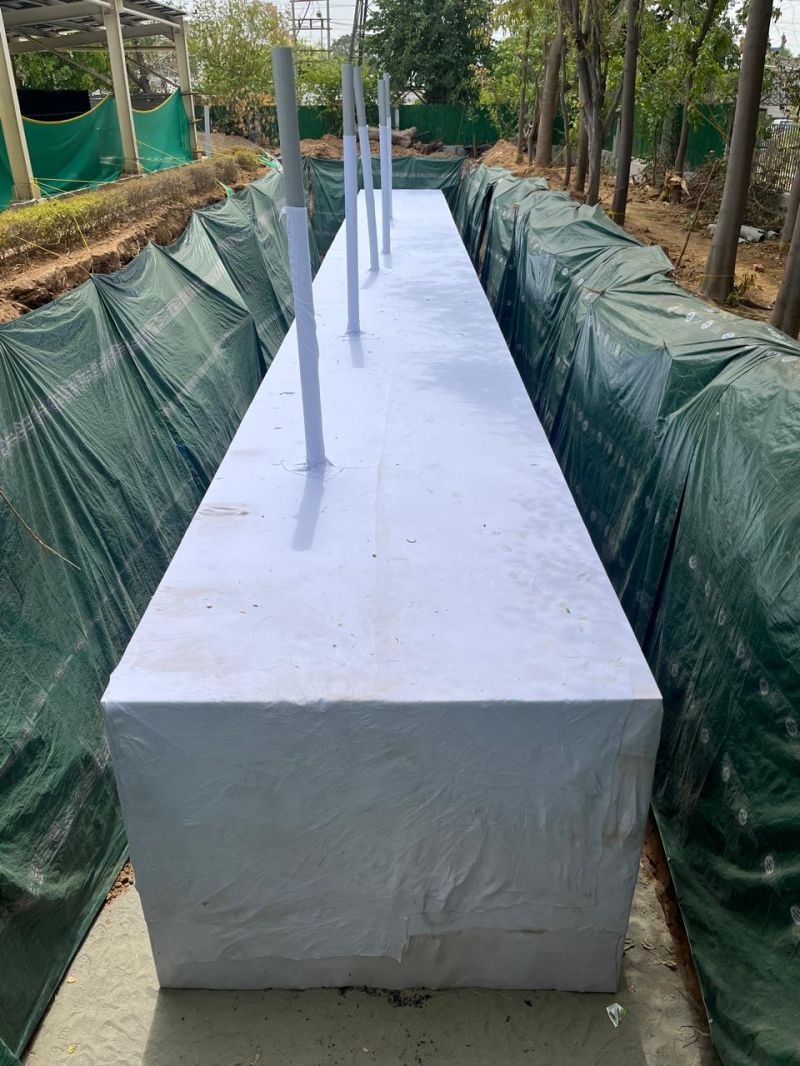

Modular rainwater harvesting

This blog explores the benefits, components, design considerations, installation process, and maintenance of rainwater harvesting systems for industries. By the end, you’ll understand how industries can leverage RWH to enhance efficiency and environmental responsibility.

Why Industries Should Adopt Rainwater Harvesting?

Industries consume vast amounts of water for processes, cooling, cleaning, and landscaping. Rainwater harvesting offers multiple advantages:

1. Cost Savings

• Reduces reliance on municipal or ground water recharge sources, lowering water bills.
• Decreases energy costs associated with pumping and treating water.

2. Sustainable Water Management

• Mitigates water scarcity by utilizing a renewable resource.
• Reduces the burden on local water supplies.

3. Compliance with Environmental Regulations

• Many governments encourage or mandate rainwater harvesting for industries to promote sustainability.
• Helps industries meet Corporate Social Responsibility (CSR) goals.

4. Improved Water Security

• Provides an alternative water source during shortages or droughts.
• Reduces vulnerability to water supply disruptions.

5. Reduced Flooding and Erosion

• Capturing rainwater minimizes runoff, preventing soil erosion and flooding in industrial areas.

Components of an Industrial Rainwater Harvesting System

A well-designed RWH system for industries consists of the following key components:

1. Catchment Area

• Roofs, paved surfaces, and open land within the industrial facility collect rainwater.
• Industrial roof top Rainwater harvesting system (factory sheds, warehouses) are ideal due to their large surface area.

2. Gutters and Downspouts

• Channels that direct rainwater harvesting in delhi from the catchment area to storage tanks.
• Made of PVC, aluminum, or galvanized steel to prevent corrosion.

3. Leaf Screens and First Flush Diverters

• Leaf screens filter out debris (leaves, dust) before water enters storage.
• First flush diverters discard the initial rainwater, which may contain pollutants from the catchment surface.

4. Storage Tanks

• Underground or above-ground tanks store harvested rainwater.
• Materials: Concrete, polyethylene, or fiberglass (depending on capacity and budget).
• Large industries may require modular tanks or reservoirs for high-volume storage.

5. Filtration and Purification System

• Sand filters, carbon filters, and UV sterilization ensure water quality for industrial use.
• If used for drinking, reverse osmosis (RO) or chlorination may be necessary.

6. Pumping and Distribution System

• Submersible or centrifugal pumps transport water to processing units, cooling towers, or irrigation systems.
• Automated systems with sensors optimize water distribution.

7. Overflow Mechanism

• Excess water is directed to recharge wells, drainage systems, or secondary storage to prevent flooding.

Design Considerations for Industrial RWH Systems

1. Assessing Water Demand

• Calculate daily water requirements for industrial processes, cooling, sanitation, and landscaping.
• Example: A textile factory may need 100,000 liters/day, while a food processing plant may require 50,000 liters/day.

2. Rainfall Data and Catchment Potential

• Analyze annual rainfall patterns in the region.
• Formula to estimate harvestable rainwater:Harvestable Water (Liters)=Rainfall (mm)×Catchment Area (m²)×Runoff CoefficientHarvestable Water (Liters)=Rainfall (mm)×Catchment Area (m²)×Runoff Coefficient(Runoff coefficient: 0.8 for roofs, 0.6 for paved areas)

3. Storage Capacity Planning

• Storage should meet at least 20-30% of monthly water demand.
• Example: If monthly demand is 3 million liters, storage capacity should be 600,000–900,000 liters.

4. Choosing the Right Filtration System

• Basic filtration (for non-potable uses like cooling or cleaning).
• Advanced purification (if used in manufacturing or drinking).

5. Integration with Existing Water Supply

• RWH systems can be linked to municipal supply as a backup.
• Automated switching systems ensure seamless operation.

Step-by-Step Installation Process

Step 1: Site Assessment & Feasibility Study

• Evaluate catchment area, rainfall data, and water needs.
• Check local regulations and permits.

Step 2: System Design & Component Selection

• Choose tank size, filtration method, and pump capacity.
• Use CAD or 3D modeling for optimal layout.

Step 3: Construction & Installation

• Install gutters, downspouts, and first flush systems.
• Set up storage tanks (underground/above-ground).
• Connect filtration and pumping systems.

Step 4: Testing & Commissioning

• Check for leaks and proper filtration.
• Test pump efficiency and water quality.

Step 5: Employee Training & Maintenance Plan

• Train staff on system operation.
• Schedule regular cleaning and inspections.

Maintenance of Industrial RWH Systems

To ensure long-term efficiency:

✔ Clean gutters and filters every 3–6 months.

✔ Inspect tanks for algae growth or contamination.

✔ Check pumps and pipes for leaks or blockages.

✔ Test water quality periodically (especially if used in production).

Case Study: Successful Industrial RWH Implementation

Company: XYZ Automotive Plant

Location: Chennai, India

Challenge: High water costs and frequent shortages.

Solution: Installed a 500,000-liter RWH system with rooftop catchment and underground storage.

Results:

• Reduced municipal water use by 40%.
• Saved $50,000 annually in water bills.
• Improved compliance with state water conservation laws.

Conclusion

Rainwater harvesting is a cost-effective, sustainable, and regulatory-compliant solution for industries. By designing an efficient RWH system, industries can cut costs, enhance water security, and contribute to environmental conservation.

Investing in rainwater harvesting is not just an operational upgrade—it’s a strategic move toward sustainability. Start planning your industrial RWH system today and secure a water-efficient future for your business.

FAQs

Q1. Can harvested rainwater be used for drinking in industries?

Yes, with proper filtration (RO/UV/chlorination), it can meet drinking standards.

Q2. What is the lifespan of an industrial RWH system?

With proper maintenance, 20–30 years.

Q3. How much does an industrial RWH system cost?

Depends on scale—$10,000 to $100,000+ for large industries.

Q4. Does RWH work in low-rainfall regions?

Yes, even in arid regions, efficient storage and reuse make it viable.

Q5. Can RWH reduce industrial carbon footprint?

Yes, by lowering energy use in water pumping and treatment.

By adopting rainwater harvesting, industries can lead the way in sustainable water management while improving profitability and resilience. Start your RWH project today
