As electric vehicles (EVs) become more prevalent, the safety and reliability of EV charging infrastructure are increasingly critical. One essential safety component built into most chargers is the Residual Current Device (RCD). These devices protect users from electric shock and reduce the risk of fire caused by ground faults.
RCDs continuously monitor the electrical current in a circuit and disconnect power immediately when an imbalance is detected. While their function may seem simple, RCDs play a vital role in ensuring safe, reliable EV charging.
This article explores the types of RCDs used in EV charging systems, their importance, and how to select the right type to meet today’s evolving safety standards.
What Is a Residual Current Device (RCD)?
A Residual Current Device is a life-saving safety mechanism that disconnects power when it detects an imbalance between the live and neutral conductors. Such imbalances typically indicate leakage current—possibly from someone touching a live part or a fault in the system—which can cause severe injury or fire.
While RCDs are used in many electrical applications, they are now mandatory in EV charging installations due to the high current involved. Without an RCD, a ground fault during charging could result in serious safety risks.

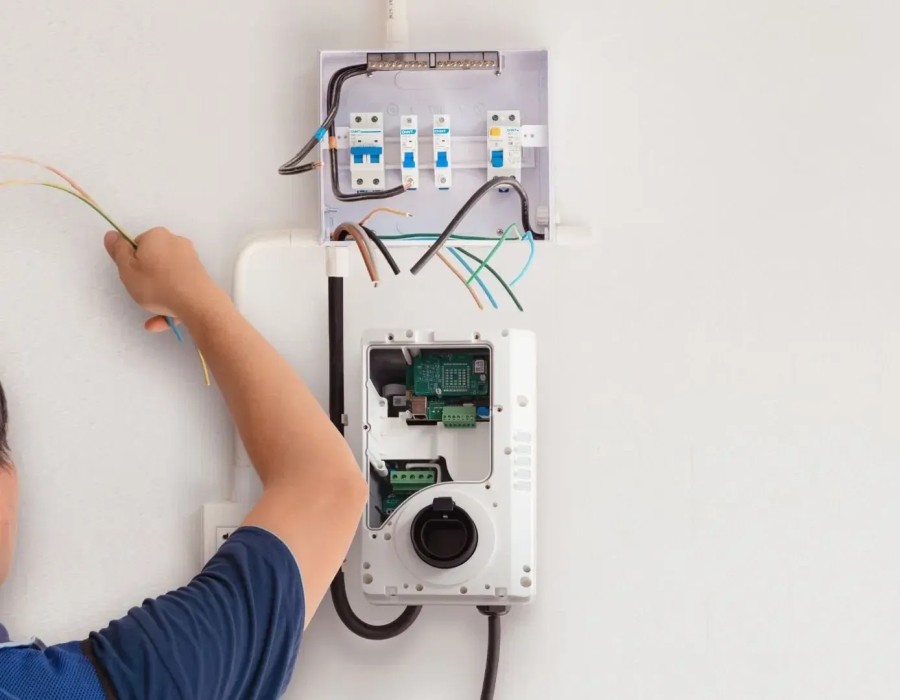

How RCDs Work in China EV Chargers
In EV charging, RCDs function as a protective barrier between the electrical system and the user. They monitor the current entering and leaving the charger, and if a discrepancy—usually above 30 milliamps—is detected, the RCD trips and cuts off power instantly.
This rapid disconnection helps prevent electrical shocks and minimizes the risk of fire caused by unseen leakage currents. With EV chargers often installed outdoors and used unattended, RCD protection is a crucial safety measure.
Compliance: What IEC 60364 Requires
The international standard IEC 60364-7-722 states:
"Each AC connecting point shall be individually protected by a residual current device (RCD) with a rated residual operating current not exceeding 30 mA."
This highlights that RCD protection is not optional—it's a requirement. But beyond simply installing an RCD, it’s essential to choose the correct type to handle the specific electrical behavior of EV chargers.
Types of RCDs and Their Use in EV Charging
Different RCD types are designed for specific electrical conditions. Here’s a breakdown:
1. Type AC RCD
- Function: Detects sinusoidal AC leakage currents.
- Use Case: Standard household circuits.
- Limitation: Not suitable for EV chargers, as it doesn’t detect DC leakage currents.
2. Type A RCD
- Function: Detects sinusoidal AC and pulsating DC leakage currents.
- Use Case: General household installations and basic EV chargers.
- Limitation: Fails to detect smooth DC leakage above 6 mA, which may occur in modern EVs.
3. Type F RCD
- Function: Detects mixed-frequency leakage currents.
- Use Case: Appliances with variable frequency drives.
- Limitation: Not commonly used in EV charging applications.
4. Type B RCD
- Function: Detects all leakage currents—AC, pulsating DC, and smooth DC up to 1 kHz.
- Use Case: Ideal for EV charging stations, photovoltaic systems, and industrial setups.
- Strength: Comprehensive protection, making it the recommended standard for EV chargers.
Why Type B RCDs Are Best for EV Chargers
Modern EV chargers handle increasingly complex power flows, including DC charging and bidirectional energy exchange. In such systems, DC leakage can occur—something that Type AC and Type A RCDs cannot detect reliably.
If a DC fault is present, lower-grade RCDs can become “blinded,” meaning they fail to trip even when a dangerous current exists. Type B RCDs, however, are designed to detect all types of leakage currents and are immune to this issue.
They also help future-proof your installation. As EV technology advances and integrates more sophisticated charging methods, Type B RCDs ensure continued compliance and safety.
Choosing and Implementing the Right RCD
Match the RCD to the Charger’s Design
DC fast chargers typically require a Type B RCD due to their internal power electronics. Even for AC chargers, if DC leakage from the vehicle is possible, Type B remains the safest option.
Some AC chargers integrate a 6 mA DC leakage detection circuit. In such cases, a Type A RCD can be used externally, but this combination must be carefully engineered and certified to meet safety regulations.
Consider the Installation Environment
Outdoor installations introduce challenges like moisture, temperature changes, and dust. RCDs used in EV chargers should be rated for these conditions. Proper grounding and periodic testing also help maintain reliable protection.
RCDs Build Confidence and Enhance Safety
Beyond compliance, using the right RCD builds user trust. EV owners often charge overnight or while away from the vehicle. A correctly functioning RCD offers peace of mind, guarding against silent electrical faults that could otherwise have severe consequences.
Safe and reliable charging supports the wider adoption of EVs and contributes to a more sustainable, user-friendly energy ecosystem.
Cost vs. Protection: Is Type B Worth It?
Type B RCDs cost more than Type A or Type AC units—but this investment is justified. In public or commercial EV charging stations, the cost of a safety incident far outweighs the upfront price difference. Even in residential settings, as EV chargers become more advanced, Type B RCDs are increasingly relevant.
The Future of RCDs in EV Charging Infrastructure
EV infrastructure is evolving—incorporating bidirectional charging (V2G), solar integration, and smart energy management. These advances increase the need for RCDs that can detect a wide range of fault conditions.
In the near future, RCDs may also feature smart diagnostics, remote monitoring, and integration with digital energy platforms. However, the need for robust AC and DC leakage detection will remain constant—ensuring that Type B RCDs stay central to EV charging safety.
Conclusion: Choose Smart, Charge Safe
RCDs are not optional extras—they are critical safety components in any EV charging setup. While lower-tier RCDs may offer partial protection, only Type B RCDs provide full-spectrum defense against all types of leakage currents.
Whether you're planning a home charger or building a commercial EV charging network, selecting the right RCD is key to protecting users, equipment, and your long-term investment.
As electric mobility accelerates, start with safety. Choose the right RCD—because a safer charge is a smarter charge. Know more about Google SEO Directory
