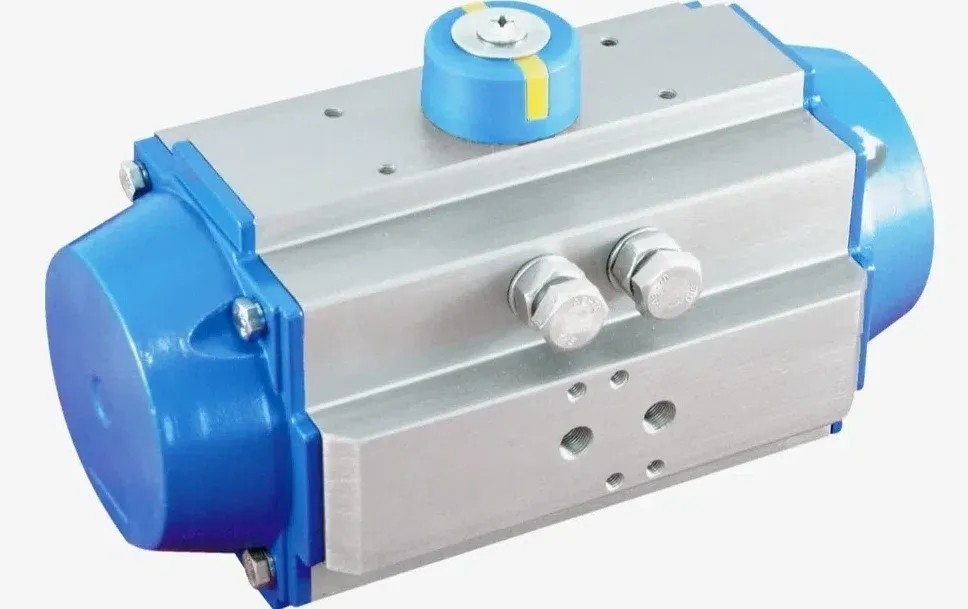

Understanding Pneumatic Rotary Actuators: Principles, Types, and Applications

Introduction

As a leading control valve manufacturer in China, we provide high-quality valves and control actuators customized to meet the varied demands of industrial applications.

In modern industrial environments, reliable on/off control of fluid systems is essential for maintaining safety, efficiency, and responsiveness. The pneumatic cut-off ball valve is a high-performance solution designed for rapid, automated shut-off using compressed air as the actuation medium. Key components—such as a stroke limit switch, solenoid valve, pressure regulator, and an air source (typically 0.4–0.7 MPa)—enable remote or fully automated valve control, with feedback signals indicating open or closed positions.

This valve is especially valued in applications where electrical actuation is impractical or hazardous. It is widely used across sectors including chemical processing, oil and gas, power generation, pharmaceuticals, food and beverage, textiles, aerospace, aviation, paper production, refrigeration, and wastewater treatment.

Depending on system requirements, the actuator can be configured as single-acting (spring-return) or double-acting, with the former offering a fail-safe default position in case of air or power loss—ensuring operational safety.

Key Characteristics of Pneumatic Cut-off Ball Valves

1. Minimal Fluid Resistance
2. Ball valves provide one of the lowest flow resistances of all valve types. Even in reduced-bore designs, the streamlined internal pathway ensures minimal pressure drop and maximum flow efficiency—ideal for systems where flow rate must be preserved.
3. Smooth Valve Stem Operation
4. Thrust bearings minimize stem friction during actuation, allowing for smoother, more precise movement, reducing wear, and extending service life.
5. Superior Sealing Performance
6. Elastic sealing materials—such as PTFE (Teflon)—offer excellent chemical resistance and self-lubrication. These seats maintain tight shut-off even under fluctuating pressures and improve sealing performance as pressure increases.
7. Long-Lasting Stem Seal
8. Because the valve stem operates with rotary rather than linear motion, packing wear is reduced—enhancing sealing reliability and minimizing leakage over time.
9. Extended Operational Life
10. Low-friction, self-lubricating materials combined with precision-engineered components ensure long-term durability, even in demanding operating conditions.

Advanced Product Features and Design Enhancements

Precision Manufacturing

Valve bodies are produced via precision casting or forging, ensuring dimensional accuracy, mechanical strength, and clean aesthetics. The compact design supports space-constrained installations without compromising performance.

Fixed O-Type Ball Design

In this configuration, the ball rotates in concert with the stem, maintaining consistent seat contact and offering superior shearing force—especially useful for viscous or contaminated media.

Spring-Loaded, Preloaded Seats

Seats supported by butterfly or cylindrical springs maintain constant pressure on the ball, automatically compensating for wear. This design also relieves pressure buildup inside the valve cavity caused by thermal expansion—especially important when handling volatile fluids.

Low Operating Torque

By securing the ball and optimizing the stem’s rotational movement, operational torque is minimized. This reduces actuator stress and improves energy efficiency.

Double Block and Bleed Capability

This optional feature allows the valve to isolate both upstream and downstream sides simultaneously, with the ability to bleed off trapped pressure—critical in applications requiring zero leakage or maintenance isolation.

Customizable Sealing Options

• Soft seals (e.g., PTFE) for chemical compatibility and clean applications
• Hard seals (metal-to-metal) for high-temperature, abrasive, or high-cycle service
• Optional surface treatments for enhanced wear and corrosion resistance
• Sealing configurations can include upstream seat sealing, downstream seat sealing, or upstream sealing with cavity relief.

Automatic Cavity Pressure Relief

Internal cavity pressure—caused by fluid expansion—can be safely vented without auxiliary devices. The valve seat itself automatically releases excess pressure, enhancing operational safety and system reliability.

Emergency Grease Sealing Port

For emergencies such as fire or seal surface contamination, a grease injection system enables operators to restore sealing quickly via a grease valve, minimizing downtime and maintaining process continuity.

Fire-Safe and Anti-Static Design

Fire-safe options ensure the valve maintains structural and sealing integrity under extreme temperatures. Anti-static devices prevent charge buildup during actuation, while anti-blowout stem designs secure the stem in high-pressure service.

Extended Stem Configurations

For cryogenic or sub-zero environments, valves can be fitted with extended stems to allow safe access and maintain operational integrity in low-temperature conditions.

Industrial Applications

Pneumatic cut-off ball valves are a trusted solution across numerous industries:

• Chemical and Petrochemical: Precise shut-off for aggressive and corrosive media
• Oil and Gas: Rapid isolation and pressure relief in upstream/downstream systems
• Pharmaceutical and Food: Clean shut-off in hygienic and regulated environments
• Textile and Paper: Flow control for chemicals, steam, and process water
• Power Generation: Feedwater, steam, and coolant control in boilers and turbines
• Water and Sewage Treatment: Robust shut-off for municipal and industrial fluid control
• Aerospace and Aviation: Handling of specialized, high-pressure fluids under demanding conditions

Conclusion

The pneumatic cut-off ball valve is a cornerstone of modern automated fluid control systems. Its combination of fast actuation, tight shut-off, long service life, and safety-integrated design makes it an ideal choice for a wide array of industrial applications.

Whether managing corrosive chemicals, volatile hydrocarbons, or clean process fluids, this valve offers unmatched reliability and performance. With optional features such as fire-safe construction, emergency sealing, pressure relief, and anti-static protection, it stands as a versatile and dependable solution in even the most critical operating environments.

As industries continue advancing toward intelligent automation, energy efficiency, and safety compliance, pneumatic cut-off ball valves remain an indispensable tool for ensuring secure, streamlined, and responsive flow control. Gotta know about Google SEO.
