Pneumatic Three-Way Ball Control Valves: Enhancing Industrial Fluid Control Through Precision and Flexibility

Introduction

As industrial automation accelerates, the need for precise, efficient, and flexible fluid control solutions has never been more critical. From water treatment plants to high-tech manufacturing lines, modern operations rely heavily on advanced valve technologies to manage the flow of liquids and gases with minimal manual intervention. Among the most versatile of these are pneumatic three-way ball control valves—key components that deliver unmatched performance in managing complex flow processes.

Combining pneumatic actuation with a compact, three-port valve design, these valves simplify tasks like flow diversion, mixing, and isolation. Whether used in chemical processing, HVAC, water treatment, or pneumatic and hydraulic systems, pneumatic 3-way ball valves enable safe, accurate, and efficient fluid control.

This article explores the operation, technology, and applications of pneumatic three-way ball control valves. It also highlights the value of selecting the right valve configuration and the importance of working with trusted manufacturers to ensure optimal performance and reliability.

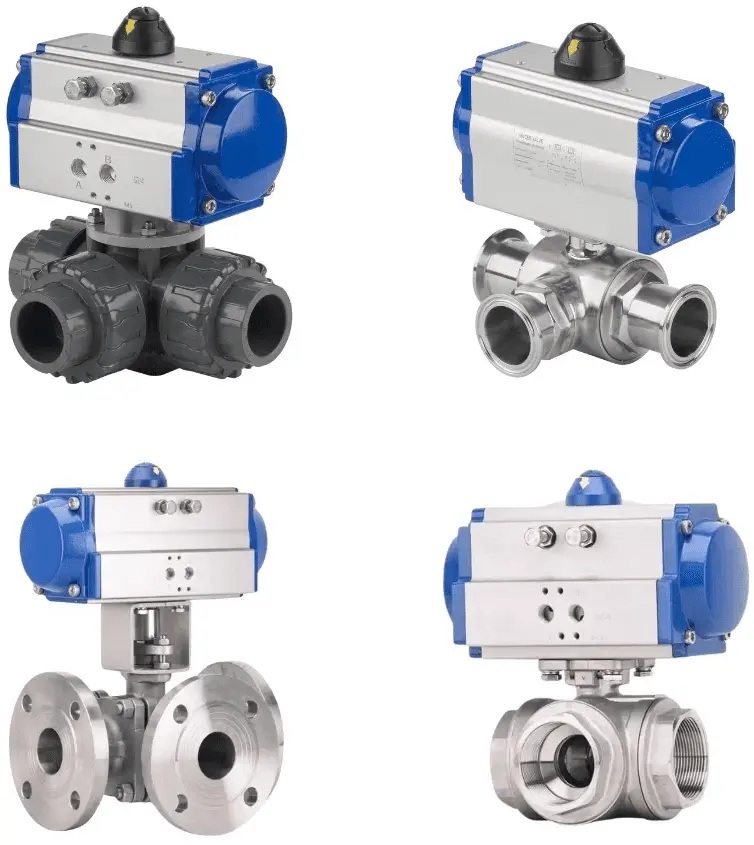

What Is a Pneumatic Three-Way Ball Control Valve?

A pneumatic three-way ball control valve merges the functionality of a standard ball valve with a three-port configuration, allowing fluid to be diverted, mixed, or shut off entirely—all in one unit. Powered by compressed air, the pneumatic actuator automates the valve’s operation for fast, remote-controlled switching.

Key Features

• Three-Port Design: Enables flow diversion, mixing, or isolation.
• Pneumatic Actuation: Provides rapid, automated operation via compressed air.
• Excellent Sealing: Ensures minimal leakage and reliable shut-off.
• Durable Construction: Typically made from stainless steel, carbon steel, or special alloys for harsh environments.

These features make pneumatic three-way ball valves ideal for automated systems requiring precise and flexible fluid management.

How Do They Work?

Though compact, the operation of a pneumatic three-way ball valve involves several coordinated components:

1. Signal Input: The actuator receives a control signal—manual or automated—to initiate valve movement.
2. Actuation Mechanism: Pneumatic energy is converted into rotary motion, which turns the valve stem.
3. Ball Positioning: A bore through the internal ball aligns with different valve ports to control flow paths.
4. Flow Configuration: Depending on the application, the valve may divert, mix, or isolate fluid flow.
5. Custom Porting: The ball can be machined with L-port or T-port designs to meet specific flow requirements.

L-Port vs. T-Port Flow Patterns

The internal configuration of the valve ball determines its flow functionality:

• L-Port: Directs flow between a common inlet and one of two outlets. Ideal for diverting applications.
• T-Port: Allows mixing of two inlets into one outlet, or distribution from one inlet to two outlets. Suited for blending and more complex control.

Choosing the correct port configuration is essential for ensuring the valve performs as required in your system.

Benefits of Pneumatic Three-Way Ball Valves

Pneumatic three-way ball control valves offer more than just flow control—they provide several strategic advantages:

• Precise Automation: Allows for accurate routing with minimal operator input.
• High-Speed Operation: Quick response times support dynamic system requirements.
• Increased Safety: Reduces manual handling in hazardous conditions; tight seals prevent leaks.
• System Versatility: Easily adapts to diverse and changing flow conditions.
• Long-Term Durability: Withstands extreme temperatures, pressures, and corrosive media.
• Seamless Integration: Works well with DCS systems, sensors, and other automation components.

Typical Applications

These valves are widely used across industries due to their adaptability and reliability:

• Water Treatment: For switching between filters, dosing chemicals, and directing treated water.
• Pneumatic Systems: Controls air flow to tools, actuators, and conveyors.
• Hydraulic Systems: Directs fluid to maintain precise motion in machinery.
• Chemical Processing: Manages flow for mixing, shutdown, and chemical isolation.
• HVAC Systems: Balances hot or chilled water flow for energy-efficient climate control.
• Food & Beverage: Directs product or cleaning fluids in sanitary processing systems.

Key Selection Criteria

Choosing the right pneumatic three-way ball valve involves evaluating:

• Flow Function: L-port or T-port based on whether you need diversion, mixing, or both.
• Material Selection: Match material properties to fluid type, pressure, and temperature.
• Actuator Type: Select between double-acting or spring-return actuators depending on control and failsafe needs.
• Sizing and Pressure Rating: Ensure compatibility with your system’s capacity.
• Standards Compliance: Verify certifications for regulated or safety-critical environments.

Partnering with the Right Manufacturer

Working with experienced manufacturers ensures you get not only a quality product, but also expert support in valve sizing, customization, and long-term maintenance. A reliable supplier can help you reduce downtime, meet compliance requirements, and extend the life of your equipment.

The Future of Valve Automation

With the rise of Industry 4.0, pneumatic valves are becoming smarter. Integration with IoT, real-time sensors, and predictive maintenance systems is enhancing performance and operational visibility. These innovations enable proactive maintenance and remote diagnostics, reducing downtime and improving system reliability.

Advances in materials and design are also allowing valves to handle more extreme conditions, broadening their use in high-demand applications across industries.

Conclusion

Pneumatic three-way ball control valves are indispensable in today’s automated industrial systems. Their ability to handle complex flow patterns—combined with speed, reliability, and safety—makes them a cornerstone of efficient fluid management.

Choosing high-quality valves from trusted manufacturers ensures long-term performance, compliance, and adaptability. As automation continues to evolve, these valves will remain critical to achieving smarter, safer, and more efficient operations across all sectors. Know more about Google SEO Directory
