In industrial production, sealing technology is critical to ensuring reliable equipment operation and preventing leakage. Among the many sealing methods, packing seals are widely used thanks to their simple structure and low cost. However, this method also presents significant challenges—particularly friction and wear—that affect performance and service life. This article examines the working principles of packing seals, the main issues encountered in practice, and effective optimization strategies to enhance sealing reliability.
Working Principle of Packing Seal
A packing seal relies on the close contact between the packing material and the shaft (or rod) to achieve sealing. The system typically consists of:
- Packing: sealing material placed in the stuffing box.
- Stuffing box: cavity that houses the packing.
- Gland: applies axial pressure to compress the packing.
When the gland applies pressure, the packing deforms and tightly adheres to the shaft surface, preventing fluid leakage. Compared with other sealing methods, packing seals have a relatively large contact area and require sufficient compression force, which inevitably makes friction and wear more pronounced during operation.
Factors Influencing Friction and Wear
Friction and wear directly impact sealing performance and lifespan. Excessive friction increases energy consumption and accelerates wear of both shaft and packing, which in turn reduces sealing effectiveness and raises the risk of leakage or equipment failure.
1. Gland Pressure
- Proper pressure ensures close contact and reliable sealing.
- Excessive pressure causes over-compression, high friction, and accelerated wear.
- Insufficient pressure fails to achieve sealing, leading to leakage.
2. Operating Time
Prolonged operation reduces packing elasticity and roughens its surface, increasing friction. Continuous friction also depletes internal lubricants, further aggravating wear.
3. Number of Packing Rings
- More rings improve sealing but increase contact area and friction.
- Fewer rings reduce friction but compromise sealing performance.
- A balanced number must be chosen according to working conditions.
4. Shaft Surface Roughness
A rough shaft surface raises friction, accelerates wear, and compromises sealing. Smooth shaft finishing is essential during design and installation.

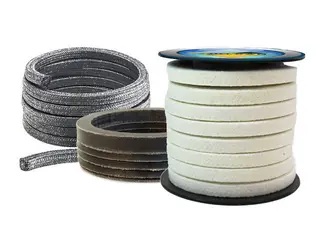

5. Packing Material
Different packing materials have widely varying friction coefficients.
- PTFE packing against steel: ~0.04
- Cotton packing against steel: 0.6–0.7 (about 20× higher)
Material selection should match operating conditions and media characteristics to minimize wear.
Wear Issues and Solutions
1. Manifestations of Wear
- Normally installed packing shows gradual wear, greatest near the gland.
- Improperly installed packing wears rapidly at the gland, while inner rings remain unworn.
- Electrochemical corrosion may occur when graphite packing contacts stainless steel shafts in conductive media, roughening the shaft surface and accelerating wear.
2. Solutions
- Optimize installation: Install rings step by step, applying slight compression to each. Spacer rings can provide lubricant injection and leakage monitoring.
- Select suitable packing materials: Carbon fiber packing offers the best wear resistance; asbestos causes the worst shaft wear but improves significantly when impregnated with PTFE. Impregnants greatly affect durability.
- Apply lubrication and cooling: Lubricants reduce friction and dissipate heat. In demanding conditions (high temperature, high pressure, high speed), external lubrication and cooling should be used. Springs beneath washers can also maintain seal integrity by automatically compensating for wear.
Lubrication and Cooling of Packing Seals
1. Importance of Lubrication
Lubrication reduces friction, lowers wear, and removes heat. Most braided packings are pre-impregnated with lubricants, but additional forced lubrication is often necessary under extreme conditions.
2. Key Requirements for Lubricants
- Chemical stability: no harmful reactions with the medium.
- Good impregnating ability: penetrate fibers and release gradually.
- Non-conductive properties: prevent electrochemical corrosion.
- Temperature resistance: withstand thermal conditions without degradation.
3. Common Lubricants
- Animal fat: suitable for cold water and fiber packing; fatty acids may corrode shafts.
- Castor oil: suitable for water and acid-salt media; soluble in mineral oils.
- Glycerin: works well with petroleum products and steam.
- Graphite: excellent solid lubricant but conductive—risk of electrochemical corrosion.
- PTFE: effective filler and lubricant, chemically inert, insulating, suitable from –200℃ to 250℃.
Conclusion
As a widely applied contact sealing method, packing seals play a vital role in industrial production. Yet, their inherent issues—particularly friction and wear—require systematic optimization. By:
- Choosing appropriate materials and impregnants,
- Employing automatic compensation mechanisms,
- Strengthening lubrication and cooling, and
- Ensuring proper installation and maintenance,
the service life of packing seals can be extended, sealing performance improved, and maintenance costs reduced. With these measures, packing seals will continue to provide reliable leakage control in modern industrial operations.Discover everything you need to know about Google SEO.
