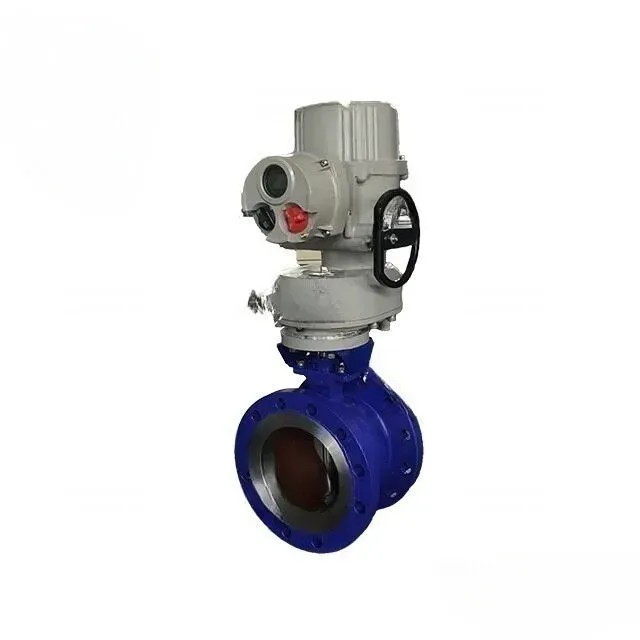

Metal Seated Ball Control Valve: Features, Benefits, and Applications

Introduction

In industrial fluid control, precision, durability, and reliability are essential. The Metal Seated Ball Control Valve distinguishes itself as a versatile and robust solution engineered to meet the stringent demands of diverse industries. Featuring advanced design, high-performance materials, and superior sealing capabilities, this valve is built to withstand extreme conditions—including high temperatures, corrosive media, and abrasive environments. This article provides an in-depth overview of the Metal Seated Ball Control Valve, highlighting its specifications, features, benefits, and broad industry applications.

Product Overview

The Metal Seated Ball Control Valve offers precise flow control in challenging industrial settings. Key specifications include:

• Size Range: 1–10 inch (DN25–DN250)
• Pressure Rating: PN10–PN63, Class 150 LB to 600 LB
• Temperature Range:
• Metal Seat: –29°C to +450°C
• Resilient Seat: –29°C to +150°C
• Seal Tightness:
• Metal Seat: Class IV
• Resilient Seat: Class VI
• Body Material: Stainless Steel (ASTM A351 CF8, CF8M), Carbon Steel (ASTM A216 WCB), Special Alloys
• Ball/Stem Material: Stainless Steel, Special Alloys
• Seat Material: Stainless Steel + STL (Wafer), Stainless Steel + STL, PCTFE, PEEK (Flange)
• End Connection: Wafer
• Face to Face Standards: ISA S75.04, IEC/DIN 534-3-2 (Flange)
• Flange Standards: GB/T 9113.1, JB/T 79.1, HG 20592, ASME B16.34, ISO 7005 (custom drilling available)
• Flow Characteristic: Equal Percentage
• Applications: Pulp & Paper, Water Treatment, Food & Beverage, Fine Chemical, Power Plant, Steel Industry

Key Features

• V-Notch Ball Design: Delivers strong cutting force and reliable sealing under high pressure and temperature, ideal for abrasive and viscous media.
• Advanced Surface Treatments: Options like hard chromium plating, nitriding, and HCOF coating enhance hardness, abrasion and fatigue resistance, corrosion protection, and high-temperature performance.
• Precision-Ground Notched Ball Surface: Ensures low operating torque and tight sealing for efficient, long-lasting operation.
• Robust Construction: Built from premium stainless steel, carbon steel, and specialty alloys for exceptional durability in harsh conditions.
• Versatile End Connections: Wafer and flange options accommodate diverse piping configurations.
• Equal Percentage Flow: Provides accurate modulation suitable for precise flow control requirements.

Advantages

• Exceptional Durability: High-grade materials and construction guarantee longevity, even in extreme environments.
• Superior Sealing: Metal seats achieve Class IV tightness, while resilient seats reach Class VI for leak-free performance.
• High-Temperature Capability: Metal seats withstand temperatures up to +450°C, supporting demanding thermal applications.
• Corrosion & Abrasion Resistance: Enhanced by advanced coatings and materials to handle corrosive and abrasive fluids reliably.
• Low Operating Torque: Precision-ground surfaces reduce wear and facilitate smooth operation.
• Broad Versatility: Multiple sizes, pressure classes, and connection options suit a wide range of industrial needs.
• Simplified Maintenance: Designed for easy servicing to minimize downtime and optimize lifecycle costs.

Applications

• Pulp & Paper: Controls processes such as pulp digestion, bleaching, and coating where abrasive and corrosive media are common.
• Water Treatment: Manages flow in filtration, disinfection, and sludge handling systems.
• Food & Beverage: Suitable for hygienic, corrosion-resistant applications like processing, bottling, and packaging.
• Fine Chemicals: Ideal for handling aggressive chemicals in pharmaceutical and specialty chemical production.
• Power Plants: Used in steam control, cooling water circuits, and fuel management.
• Steel Industry: Controls flow in cooling, descaling, and gas handling operations.

Conclusion

The Metal Seated Ball Control Valve is a high-performance solution engineered to satisfy the rigorous demands of modern industry. Its advanced design, exceptional durability, and superior sealing performance make it a reliable choice across sectors from pulp and paper to power generation. With its adaptability, ease of maintenance, and resilience under extreme conditions, this valve is an indispensable asset in fluid control systems.

For industries seeking to improve efficiency, reduce downtime, and guarantee leak-tight operation, the Metal Seated Ball Control Valve offers unmatched reliability and precision. In applications where accuracy and toughness are critical, this valve stands as a trusted cornerstone of industrial fluid control. Learn more about Google SEO.
