Introduction
Butterfly control valves are crucial components in various industries, serving to regulate the flow of fluids in pipelines. Whether it's in water treatment, chemical processing, power generation, or HVAC systems, the performance of these valves hinges not just on the valve body itself but also on the actuator that controls it.
The actuator is responsible for moving the valve's disc, allowing the flow to be adjusted or stopped completely. The type of actuator you choose can significantly impact the valve's efficiency, safety, and longevity. Actuators vary in their operation, whether manual, electric, pneumatic, or hydraulic, and the choice depends on the application requirements.
This guide will explore the different types of butterfly valve actuators, key considerations for selecting the right actuator, and the ideal applications for each type. Whether you’re an engineer designing a new system or a maintenance professional replacing existing equipment, this guide will provide valuable insights to help you make an informed decision.
The Role of the Actuator in Butterfly Valves
The actuator is the driving force behind the movement of the butterfly valve. It connects to the valve’s shaft and manipulates the position of the disc to regulate fluid flow. Actuators can range from simple manual systems to advanced automated units. The type of actuator chosen will determine the valve's performance, particularly in automated systems where actuators integrate with control systems to adjust the flow without human intervention.
Key Considerations in Selecting a Butterfly Valve Actuator
When choosing an actuator for a butterfly valve, several factors must be considered to ensure it is well-suited for the application:
- Frequency of Operation
- For infrequent operations, such as during maintenance or emergency shut-offs, manual actuators may suffice. For processes requiring frequent operation or automation, electric, pneumatic, or hydraulic actuators are better suited.
- Valve Size and Torque Requirements
- Larger valves require more torque to operate. For large-diameter valves, manual actuators may need to be supplemented with gearboxes. Pneumatic and hydraulic actuators, which have higher power-to-size ratios, are typically used for high-torque applications.
- System Pressure and Media Type
- Hydraulic actuators offer superior control and durability in high-pressure systems or those dealing with viscous or abrasive media. Pneumatic actuators also perform well in medium to high-pressure applications but require clean, dry air.
- Response Time
- For applications requiring quick opening or closing—such as emergency shut-offs—pneumatic actuators are ideal due to their rapid response time. Electric actuators tend to be slower but are more accurate in terms of positioning.
- Power Source Availability
- The availability of an external power source often determines the choice of actuator. Manual actuators require no external power, making them suitable for remote areas without electricity or compressed air.
- Environmental Conditions
- In harsh environments, such as those with explosive gases or high humidity, electric actuators may not be suitable. Pneumatic and hydraulic actuators tend to perform better under these conditions.
- Cost
- Manual actuators are the most affordable, followed by electric, pneumatic, and hydraulic actuators. While automated actuators have a higher upfront cost, they can lead to lower operating costs and improved performance in the long run.
Types of Butterfly Valve Actuators
- Manual Actuator
- Description: Manual actuators require physical effort, typically via a handwheel, lever, or gearbox, to operate the valve. Gear-operated actuators are often added for larger valves to reduce the effort needed.
- Key Features:
- No power source needed
- Simple installation and maintenance
- Suitable for infrequent operation
- Applications:
- Water supply systems
- HVAC systems
- Agricultural irrigation
- Advantages:
- Low cost
- Simple construction
- Fail-safe operation
- Disadvantages:
- Not suitable for automation
- Requires manual intervention
- Not ideal for large or high-pressure systems

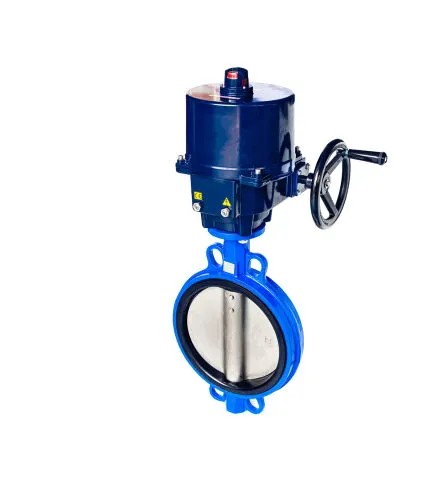

- Electric Actuator
- Description: Electric actuators use motors powered by AC or DC current to open or close the valve. They are integrated into control systems for precise flow regulation.
- Key Features:
- Ideal for automated systems
- Precise and programmable control
- Includes torque limiters and position indicators
- Applications:
- Water treatment facilities
- Pharmaceutical production
- Building management systems
- Advantages:
- Accurate and programmable
- Low noise operation
- Suitable for continuous operation
- Disadvantages:
- Slower response time
- Not suitable for wet or explosive environments
- Higher initial cost
- Pneumatic Actuator
- Description: Pneumatic actuators use compressed air to move a piston or diaphragm that turns the valve. They are known for their fast and repeatable operation.
- Key Features:
- Fast and responsive
- Available in double-acting or spring-return configurations
- Cost-effective compared to hydraulic systems
- Applications:
- Chemical processing
- Oil and gas pipelines
- Fire protection systems
- Advantages:
- Fast actuation
- Lightweight and compact
- Suitable for hazardous environments
- Disadvantages:
- Requires clean, dry air supply
- Can be noisy
- Air leaks may reduce efficiency
- Hydraulic Actuator
- Description: Hydraulic actuators use pressurized hydraulic fluid to move a piston, generating the torque needed for large or high-pressure valves.
- Key Features:
- High torque output
- Reliable under high-pressure conditions
- Available in both linear and rotary designs
- Applications:
- Marine and offshore platforms
- Heavy-duty water control systems
- Steel and paper manufacturing
- Advantages:
- Ideal for large-diameter valves
- Excellent performance under extreme conditions
- Smooth and powerful operation
- Disadvantages:
- Higher installation complexity and cost
- Requires hydraulic fluid maintenance
- Potential for leaks
Actuator Selection Summary Table
Actuator Type Power Source Best For Response Time Automation Cost Suitability for Harsh Environments Manual None Small, rarely operated valves Slow No Low Good (basic use) Electric Electricity Precise control, indoor use Moderate Yes Medium Poor in wet/explosive settings Pneumatic Compressed Air Fast operation, automation Fast Yes Medium-High Excellent Hydraulic Hydraulic Fluid High torque, large valves Fast Yes High Excellent Conclusion
Selecting the right actuator for a butterfly valve depends on the specific needs of your application. While manual actuators may be sufficient for simple and infrequent operations, electric, pneumatic, and hydraulic actuators offer better control and automation for demanding systems. Pneumatic actuators are a popular choice for their combination of speed, cost, and reliability, while electric actuators provide high precision. Hydraulic actuators are best suited for heavy-duty operations requiring high torque.
By understanding these actuator types and considering factors such as system pressure, valve size, and environmental conditions, you can ensure optimal performance, safety, and longevity for your butterfly valve system.Know more about Google SEO Directory
