Bellows Globe Control Valve: Precision, Safety, and Performance in Flow Control

Introduction

In industries where safety, environmental protection, and process reliability are critical, even the smallest valve leaks can cause significant risks. Whether in petrochemical plants, pharmaceutical manufacturing, power generation, or semiconductor processing, strict compliance with safety and emissions standards is mandatory. Bellows globe control valves have emerged as a vital solution, delivering precision control combined with zero fugitive emissions.

A bellows globe control valve is a specialized type of globe valve featuring an integrated metallic bellows seal around the valve stem. This flexible, corrosion-resistant bellows forms a hermetic barrier that prevents leakage of hazardous or volatile fluids, ensuring superior sealing integrity. By eliminating stem leakage, these valves reduce maintenance requirements and extend service life, particularly in demanding high-pressure and corrosive applications.

This article provides a comprehensive overview of bellows globe control valves, covering their design principles, key features, advantages, applications, and internal components.

What is a Bellows Globe Control Valve?

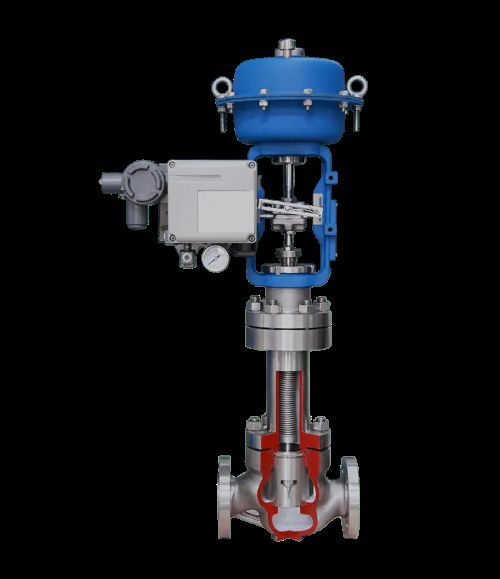

A bellows globe control valve is a linear motion valve designed to regulate fluid flow with high precision. Unlike conventional globe valves that rely solely on packing around the stem, this valve incorporates a metallic bellows element welded between the valve stem and bonnet. The bellows flexes as the stem moves, isolating the process fluid completely and eliminating leakage paths through the packing gland.

Typically constructed from corrosion-resistant stainless steel or high-performance alloys like Inconel, the bellows is housed within the bonnet and subjected to rigorous helium leak testing to guarantee absolute sealing integrity. This design ensures zero leakage even under extreme pressures, aggressive chemicals, or elevated temperatures.

Why Choose a Bellows Seal Design?

Traditional globe valves depend on packing material to seal the stem, but packing can degrade over time due to thermal cycling, vibration, or corrosive exposure—allowing fugitive emissions that pose environmental and safety hazards.

Bellows-sealed valves solve this by replacing packing with a durable metallic bellows, offering several advantages:

• Hermetic sealing: Meets or exceeds strict emissions regulations (e.g., TA-Luft, ISO 15848, EPA).
• Reduced maintenance: Eliminates the need for periodic repacking, cutting labor and downtime.
• Extended lifespan: Bellows assemblies withstand tens of thousands of full stroke cycles.
• Enhanced safety: Ideal for hazardous, toxic, or flammable media.

Key Design Features

Metallic Bellows Assembly

• Thin-walled stainless steel or Inconel construction for flexibility and corrosion resistance
• Helium leak-tested for guaranteed zero leakage

Non-Rotating Stem

• Prevents torsional stress on the bellows, improving reliability and alignment

Hermetically Welded Connections

• Minimizes or eliminates threaded/flanged joints near sealing areas
• Welded joints prevent leak paths

Vacuum Brazed or Welded Seat

• Permanent bonding of seat ring to valve body for enhanced sealing integrity

Backup Packing Seal

• Secondary sealing system in case of bellows failure
• Some models include leak detection ports for monitoring

Globe Valve Operating Mechanism

Globe valves regulate flow by moving a disc or plug against a stationary seat inside a globe-shaped body. Main components include:

• Valve Body: Pressure-retaining shell with inlet/outlet ports
• Bonnet: Contains stem and bellows, allowing maintenance access
• Valve Stem: Connects actuator to plug for linear motion
• Plug (Disc): Modulates or stops flow
• Seat Ring: Provides sealing surface
• Bellows Seal: Welded to stem and bonnet, ensuring hermetic isolation
• Packing & Gland: Backup sealing

These valves can be operated manually or via pneumatic, electric, or hydraulic actuators.

Internal Trim and Flow Characteristics

The valve’s performance is enhanced by its internal trim, often featuring:

• Cage Guidance: Keeps plug centered and aligned
• Replaceable Trim: Allows flow characteristic customization and upgrades
• Anti-Cavitation Designs: Protects against damage in high differential pressure conditions
• Noise Reduction Trim: Controls noise in gas or steam applications

Together with bellows sealing, these trims ensure precise control, long valve life, and improved operational safety.

Advantages of Bellows Globe Control Valves

1. Zero Leakage

• Helium leakage rates as low as 10⁻⁶ mbar·l/s
• Eliminates fugitive emissions for environmental safety

1. Regulatory Compliance

• Meets EPA, ISO 15848, TA-Luft, and other emissions standards
• Protects personnel and environment

1. Lower Maintenance

• No frequent repacking needed
• Reduces downtime and spare parts usage

1. Durability

• Bellows rated for 20,000 to 50,000 full stroke cycles
• Resistant to corrosion and fatigue in harsh environments

1. Enhanced Process Control

• Precise throttling with low hysteresis and excellent repeatability

1. Wide Application Range

• Suitable for liquids, gases, vapors, and slurries across broad pressure and temperature ranges

Common Applications

• Petrochemical & Chemical Processing: Corrosive and flammable media control
• Power Generation: Boiler feedwater and steam regulation
• Pharmaceutical & Food Industries: Sterile, cleanroom fluid control
• Semiconductor Manufacturing: Ultra-pure water and gases, vacuum systems
• Nuclear Industry: Reactor coolant and containment systems
• Cryogenic Systems: Liquid oxygen, nitrogen, helium, and cold-box operations

Conclusion

As industries demand safer, cleaner, and more reliable process control, bellows globe control valves stand out as a superior technology. By integrating metallic bellows sealing with precision internal trims, they provide hermetic sealing, long service life, and excellent control accuracy—even in the most challenging environments.

Their proven ability to eliminate fugitive emissions makes them essential for compliance with stringent environmental standards, reducing operational risks and maintenance burdens. Whether in chemical plants, cleanrooms, nuclear facilities, or critical utilities, bellows globe control valves ensure dependable, leak-free operation and sustainable process control. Know more about Google SEO Directory
