Aramid Fiber Packing: Characteristics, Advantages, Applications, and Maintenance

In the industrial field, the choice of sealing materials is critical for ensuring equipment reliability and safe operation. Among advanced sealing solutions, aramid fiber packing stands out for its exceptional mechanical and chemical properties, earning wide adoption across demanding industries.

This article explores the characteristics, advantages, application areas, and key maintenance practices of aramid fiber packing, helping engineers and operators better understand and apply this high-performance material.

Characteristics of Aramid Fiber

Aramid fiber, short for aromatic polyamide fiber, is a high-performance polymer in which over 85% of the amide bonds are directly connected to benzene rings. This molecular structure grants aramid fibers outstanding thermal stability, flame resistance, mechanical strength, and insulation properties.

Two main commercial types dominate the market: meta-aramid and para-aramid.

1. Meta-Aramid (Aramid 1313)

• Composition: Derived from isophthaloyl chloride and m-phenylenediamine.
• Thermal stability: Operates continuously at 200 °C without aging; excellent dimensional stability.
• Flame resistance: LOI >28%; self-extinguishes without molten droplets.
• Electrical insulation: Paper-based insulation withstands up to 20 kV/mm.
• Corrosion & radiation resistance: High durability in harsh environments.
• Processability: Flexible and easily processed using conventional textile equipment.

2. Para-Aramid (Aramid 1414)

• Composition: Derived from terephthaloyl chloride and p-phenylenediamine.
• Mechanical strength: Six times stronger than steel by weight; tensile modulus 2–3× higher than steel or glass fiber, yet only one-fifth the density of steel.
• High temperature resistance: Retains strength after prolonged exposure at 200 °C; resists decomposition up to 560 °C.
• Impact & fatigue resistance: Widely known as bulletproof fiber.
• Environmental consideration: Difficult to degrade, presenting recycling challenges.

Characteristics of Aramid Fiber Packing

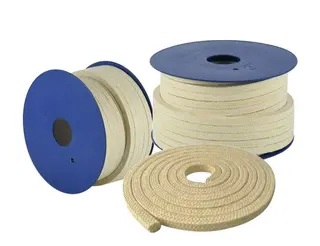

Aramid fiber packing is typically braided from aramid yarn impregnated with PTFE dispersion and lubricants, enhancing both chemical and mechanical performance.

Key advantages include:

1. Chemical resistance – Withstands acids, alkalis, and solvents; suitable for chemical and pharmaceutical industries.
2. High resilience & low cold flow – Maintains sealing performance in high-temperature, high-pressure conditions without deformation.
3. High strength – Performs reliably under high-speed, high-pressure, and abrasive operating environments.
4. Ease of maintenance – Quick disassembly and replacement reduce downtime and maintenance costs.

Applications of Aramid Fiber Packing

Due to its broad performance profile, aramid fiber packing is widely used in:

1. Pumps – Replaces asbestos packing, offering safe and durable sealing.
2. Valves – Ensures leakage prevention under corrosive and high-pressure conditions.
3. Mixers – Resists wear from intense agitation in chemical and pharmaceutical processes.
4. Compressors – Withstands high heat and pressure during continuous operation.
5. Other equipment – Effective in reactors, agitators, and pipeline flanges.

Correct Use and Maintenance

Proper installation and upkeep directly affect packing performance and service life.

Installation Steps

1. Loosen gland bolts gradually to release residual pressure.
2. Remove old packing and clean the stuffing box thoroughly.
3. Inspect shafts, rods, and other parts for corrosion or wear; replace if necessary.
4. Install new packing rings evenly; tighten bolts gradually and symmetrically. Allow controlled leakage to prevent overheating.
5. Monitor burnout rate (weight loss due to thermal decomposition) to evaluate packing quality under specific conditions.

Maintenance Guidelines

• Avoid extra lubricants: External lubrication may compromise packing integrity.
• Regular inspection: Replace worn or aged rings promptly.
• Prevent fiber mixing: Ensure packing is 100% aramid fiber, as adulteration reduces performance.

Factors Affecting Performance

Several variables influence aramid packing quality:

• Braiding density: Higher density improves resistance to wear, extrusion, and leakage.
• Braiding method: Interlock braiding provides uniform density and better lubrication retention, ideal for pumps.
• Size selection: Correct sizing ensures proper installation and minimizes downtime.
• Production equipment: Multi-spindle braiding machines produce denser, smoother, and more durable packing.

Conclusion

Aramid fiber packing combines chemical resistance, resilience, high strength, and easy maintenance, making it an excellent sealing solution for pumps, valves, compressors, and other critical equipment. With proper installation and maintenance, it not only enhances sealing efficiency but also reduces operational costs and extends equipment life.

For industries seeking reliable, asbestos-free, and high-performance sealing, aramid fiber packing remains one of the most trusted choices. It's important to know about Google SEO to help your website rank higher in search results.
