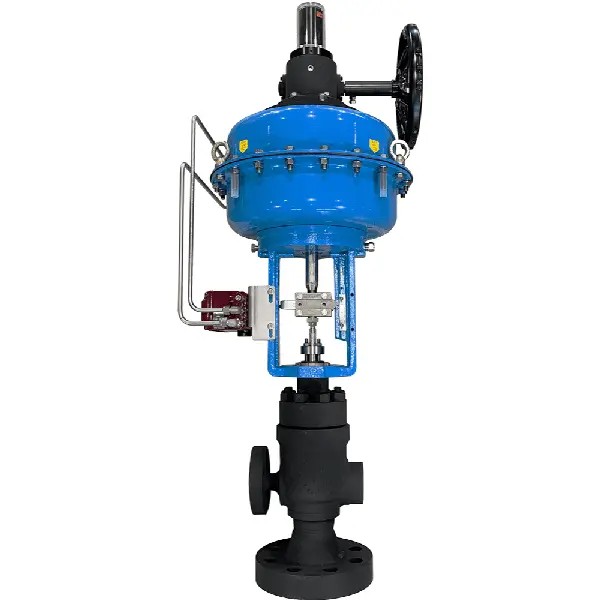

Angle Type Cage-Guided Control Valve: Advanced Solution for Severe Service Applications

Introduction

We Are a Premier Control Valve Manufacturer in China, Delivering High-Quality Valves and Control Actuators Customized to Meet a Wide Range of Industrial Applications.

In the demanding landscape of industrial process control, selecting the right valve for high-pressure, high-temperature, and high-differential pressure environments is critical. The Angle Type Cage-Guided Control Valve stands out as a sophisticated solution engineered to meet these stringent requirements. Designed to handle a wide range of clean liquids and gases, this valve excels in severe service conditions where precision, durability, and noise reduction are paramount.

Featuring a unique cage-guided structure, the valve ensures superior stability and performance under extreme operating conditions. It effectively addresses common challenges such as cavitation, erosion, noise, and vibration—making it an ideal choice for power generation, petrochemical, oil & gas, and chemical processing industries.

With configurable flow-to-open (FTO) or flow-to-close (FTC) trims, this valve adapts seamlessly to controlling steam, gas, and liquid flows. Flow-to-close trims are typically preferred for liquid applications, while flow-to-open trims suit steam and gas services. Its drilled-hole cage design enhances anti-cavitation and noise reduction, positioning the Angle Type Cage-Guided Control Valve as an indispensable tool for precise flow management in severe service environments.

Design and Functionality

Cage-Guided Mechanism for Stability

Central to the valve’s outstanding performance is its cage-guided design. Unlike stem-guided valves, where the plug may suffer from vibration and misalignment, the cage-guided mechanism keeps the plug precisely centered. This reduces wear, extends valve life, and enhances operational stability.

The cage design also improves flow characteristics, offering predictable and efficient modulation across diverse process conditions. Moreover, the drilled-hole cage minimizes noise and vibration, common challenges in high-pressure and high-velocity flows.

Customizable Trim Configurations

The valve’s trim can be tailored to match specific application needs. Available trim types include:

• Single P-Port Trim: Balanced flow control for general applications.
• Multi-Step Trim: Gradual pressure drop for severe services, mitigating cavitation and flashing.
• V-Notch Cage Trim: Fine flow modulation for precision control.
• Flashing Service Trim: Designed to handle flashing liquids and minimize internal damage.

These options make the valve adaptable for applications such as boiler blowdown, steam conditioning, and heater drain control.

Anti-Flashing and Anti-Cavitation Features

Cavitation and flashing cause rapid wear, noise, and vibration in valves. This valve combats these effects by:

• Implementing multi-stage pressure drop trims to prevent vapor bubble formation.
• Using hardened materials to resist erosion caused by flashing fluids.
• Incorporating noise and vibration control to enhance durability and reliability.

The outcome is a robust valve that significantly reduces maintenance costs and downtime.

Key Features

1. Multi-Spring Actuation:
2. Provides precise control by minimizing hysteresis and dead band.
3. Versatile Actuator Compatibility:
4. Supports diaphragm, piston, hydraulic, and electric actuators for flexible automation integration.
5. Fail-Safe Configurations:

• Fail-Closed (FC) – Closes on air supply loss.
• Fail-Open (FO) – Opens on air supply loss.
• Fail-in-Place (FIP) – Maintains last position on failure.

1. Quick-Change Trim:
2. Top-entry design enables fast bonnet and cage removal for easy inspection and trim replacement.
3. Wide Shutoff Classes:
4. Available from ANSI Class IV to Class VI to meet various leakage requirements.
5. Noise Reduction Modular Design:
6. Drilled-hole cage reduces noise and vibration for quiet, stable operation.

Benefits

• Superior Erosion & Cavitation Resistance: Hardened trims and staged pressure reduction extend valve life.
• Simplified Maintenance: Top-entry design and modular parts reduce downtime.
• Energy Efficiency: Minimizes energy loss by preventing cavitation and reducing noise.
• High-Performance Noise Control: Low-noise trims reduce the need for external silencers.
• Broad Industrial Versatility: Suitable for power plants, petrochemical refineries, chemical processing, and oil & gas operations.

Typical Applications

• Boiler Blowdown Systems: Minimizes flashing and erosion, prolonging equipment life.
• Heater Drain Valves: Controls high-temperature condensate with reduced wear.
• Steam and Gas Control: Enables precise modulation and reduces noise/vibration in high-pressure systems.
• Chemical Injection & Severe Services: Handles corrosive fluids and high-pressure drops without cavitation damage.

Maintenance and Inspection

• Top-Entry Maintenance: Quick access to internals without valve removal.
• Trim Interchangeability: Easy swapping between flow characteristics without replacing the valve.
• Reduced Downtime: Modular design and spare parts availability streamline maintenance procedures.

Customization and Accessories

• Actuators: Pneumatic, electric, and hydraulic options tailored to control system requirements.
• Positioners and Controllers: Digital positioners and smart controllers for optimized operation.
• Noise Reduction Accessories: Additional silencers and diffusers for extreme noise mitigation.
• Special Materials: Corrosion-resistant alloys and specialized seating materials for aggressive fluids.

Conclusion

The Angle Type Cage-Guided Control Valve represents a breakthrough in valve technology for severe service applications. Its robust cage-guided design, anti-cavitation and flashing features, and noise reduction capabilities make it a reliable, cost-effective choice for industries demanding precision and durability under harsh conditions.

With easy maintenance, quick trim changes, and extensive customization options, this valve optimizes process control and operational efficiency. In a market where reliability, energy efficiency, and low downtime are paramount, the Angle Type Cage-Guided Control Valve stands out as a true industry leader. Know more about Google SEO Directory
