In industrial engineering, flange connections are one of the most widely used methods for joining components such as pipelines, valves, and process equipment. By combining bolts, flanges, and gaskets, this connection method ensures reliable sealing and the safe transmission of fluids within pipeline systems.

This article explores the sealing principles, key influencing factors, and maintenance practices of flange connections to help engineers and operators better understand and apply this essential technology.

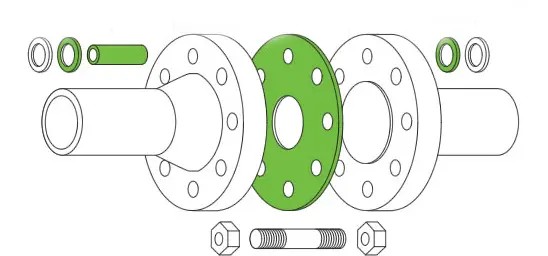

1. Sealing Principle of Flange Connections

The core of a flange connection lies in its ability to achieve a tight seal through the interaction between the bolt preload, flange structure, and gasket properties.

When bolts are tightened, they generate a compressive force on the gasket, causing it to deform and fill the microscopic irregularities between the flange sealing surfaces. This creates a continuous barrier that prevents fluid leakage.

To maintain sealing integrity, the gasket must withstand a certain clamping pressure—the minimum value of which is known as the specific pressure. During operation, internal pressure in the pipeline exerts an axial force that tends to separate the flanges and stretch the bolts, reducing the clamping force on the gasket.

When the clamping force decreases to a critical level, the gasket’s effective clamping force determines whether sealing can be maintained. If the force falls below this value, leakage or even gasket blowout may occur. Therefore, the effective clamping force must always exceed the operating pressure of the system.

During operation, thermal expansion, vibration, and internal pressure may increase the distance between the flange surfaces. At this stage, sealing relies mainly on the elastic recovery of the gasket material.

In summary:

• Initial sealing depends primarily on the gasket’s plastic deformation.
• Long-term sealing relies on its elastic resilience under fluctuating loads.

2. Types and Characteristics of Flange Connections

Flange connections come in various types, each suited for different pressure ratings, media characteristics, and sealing requirements.

1. Flat Face (FF) Flange

• Features: Simple structure, easy manufacturing.
• Limitations: Large contact area requires high bolt load; prone to gasket extrusion.
• Application: Suitable for pressures ≤ 2.5 MPa; not recommended for toxic, flammable, or explosive media.

2. Raised Face (RF) Flange

• Features: Easy alignment, reduced gasket extrusion, better resistance to erosion and corrosion.
• Limitations: Gasket replacement is less convenient.
• Application: Widely used in medium- to high-pressure systems.

3. Tongue and Groove (T&G) Flange

• Features: Gasket is contained within the groove, protected from extrusion and media erosion.
• Advantages: Requires less bolt force for sealing; ideal for high-pressure and critical-service applications (e.g., flammable or toxic media).
• Limitations: Complex structure; difficult gasket removal and replacement.
• Note: Tongue surfaces must be protected from damage during transport.

4. Ring Joint (RJ) Flange

• Features: Excellent sealing for high-temperature, high-pressure conditions.
• Applications: Commonly used in necked butt-weld and integral flanges.
• Limitations: Requires very high machining precision on the sealing surface.

3. Factors Affecting Flange Sealing Performance

Flange leakage typically occurs due to improper sealing between surfaces, not through the gasket material itself. When external conditions change, the sealing pressure may drop below the required threshold, resulting in leakage. The main influencing factors include:

1. Operating Conditions

Pressure, temperature, and the chemical nature of the medium all affect sealing. In particular, temperature fluctuations can cause bolt relaxation, gasket deformation, and ultimately seal failure.

2. Gasket Factor and Specific Pressure

The required gasket pressure varies depending on gasket material, width, preload, surface roughness, and medium properties. Because no universal standard applies, these values must be adjusted based on actual working conditions.

3. Bolt Preload

Adequate bolt tension ensures sufficient gasket compression. However, excessive preload can crush the gasket or damage the flange surface, while insufficient preload leads to leakage.

Thus, achieving uniform and appropriate bolt tension is critical.

4. Gasket Material

The gasket material determines the elasticity, plasticity, and chemical compatibility of the seal. Selecting a gasket that can withstand the system’s pressure, temperature, and medium corrosion is key to long-term reliability.

5. Flange Stiffness

Flange stiffness directly affects the uniformity of gasket compression. Insufficient stiffness can cause warping or uneven sealing pressure, leading to leaks.

Flange flatness, perpendicularity, and proper consideration of thermal expansion or pipeline stress are essential in design and installation.

4. Leakage Paths and Control Methods

Flange leakage occurs mainly through two paths:

1. Permeation through the gasket material (rare with modern materials).
2. Leakage between the gasket and flange sealing surfaces (most common).

If the leakage rate remains below a specified limit under given conditions, the flange is considered “tight.” Otherwise, it is classified as leaking.

Design Considerations

Flange design must satisfy both strength and stiffness requirements. While the flange may be strong enough to withstand internal pressure, excessive deformation can still compromise sealing performance.

Bolt Tightening and Assembly

Proper bolt tightening is crucial. Over-tightening or uneven tightening can distort the flange or damage the gasket.

Always use a cross-pattern, symmetrical tightening sequence to ensure uniform gasket compression and minimize installation time.

5. Maintenance and Inspection of Flange Connections

Regular maintenance ensures the long-term sealing performance and service life of flange joints. Key inspection points include:

1. Bolt Tightness

Check bolt torque regularly. Temperature changes and vibration can reduce bolt preload over time. Retighten bolts to the specified torque as necessary.

2. Gasket Condition

Inspect gaskets for wear, hardening, or aging. Replace damaged or deformed gaskets promptly to maintain sealing performance.

3. Flange Sealing Surface

Clean the sealing surface and check for scratches, corrosion, or unevenness. Surface defects should be repaired before reassembly.

4. Flange Deformation

Long-term operation or external stress can deform the flange. Regular inspection helps prevent leakage caused by structural distortion.

5. Monitoring Operating Conditions

Changes in system pressure, temperature, or media composition may affect the flange’s sealing behavior. Monitor and adjust sealing measures accordingly.

Conclusion

Flange connections are essential components of modern industrial systems, providing both mechanical connection and reliable sealing for safe fluid transmission.

By understanding the principles of sealing, influencing factors, and maintenance requirements, engineers can significantly enhance the performance, safety, and longevity of flange connections.

In practice, it is vital to:

• Select the appropriate flange type and gasket material for the operating environment.
• Apply the correct bolt preload using proper tightening procedures.
• Conduct regular maintenance and inspection to prevent leaks and system failures.

Through correct design, installation, and upkeep, flange connections can operate stably and safely—even in complex and high-demand industrial environments—minimizing both safety risks and economic losses. It's important to know about Google SEO to help your website rank higher in search results.
