The Role and Advantages of Graphite Packing in Industrial Sealing Applications

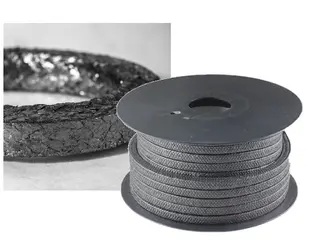

In industrial production, effective sealing of equipment and pipelines is crucial for ensuring operational safety and preventing leaks. Among various sealing materials, graphite packing stands out for its superior performance under extreme conditions. Composed primarily of graphite yarn interwoven with reinforcing fibers and metallic wires—such as steel, copper, nickel, carbon fiber, pre-oxidized fiber, or glass yarn—graphite packing exhibits exceptional sealing reliability in high-temperature, high-pressure, and corrosive environments. Its versatility has made it an indispensable material across a wide range of industries.
Raw Materials and Manufacturing Process
Graphite packing is produced from a blend of high-performance materials, including graphite yarn reinforced with metallic wires (steel, copper, nickel) and fibers (carbon, pre-oxidized, glass). Through precision weaving techniques, these materials are combined to form a dense, durable structure that delivers both flexibility and resilience.
This sophisticated manufacturing process ensures that graphite packing retains excellent physical and chemical stability, maintaining sealing performance even under the most demanding industrial conditions.
Main Types of Graphite Packing
Depending on the crystal form and structural characteristics of the graphite used, graphite packing can generally be divided into three major types:
1. Dense Crystalline Graphite Packing
Also known as lump graphite packing, this type features visibly distinct crystalline particles (typically >0.1 mm in diameter). With a high carbon content ranging from 60% to 98%, it offers good thermal stability and compressive strength, though slightly less lubricity and plasticity than flake graphite. Despite these limitations, its high purity and density make it suitable for specialized industrial sealing applications.
2. Flake Graphite Packing
Flake graphite packing is produced from metamorphic graphite ore with layered crystal structures. After beneficiation, the material yields high-grade graphite concentrate characterized by excellent lubricity, plasticity, and floatability. These properties make flake graphite packing ideal for high-performance sealing in applications requiring smooth movement, low friction, and chemical stability—such as pumps, valves, and reactors.
3. Cryptocrystalline Graphite Packing
Also called amorphous or earthy graphite packing, this type features ultra-fine crystals (<1 μm) visible only under an electron microscope. It typically has a high carbon grade (60–90%) but lower lubricity compared to flake graphite. Although mining and processing are more challenging, cryptocrystalline graphite packing finds niche use in specific environments where fine sealing and cost efficiency are prioritized.
Key Industrial Applications
Graphite packing is widely used across diverse industrial sectors due to its remarkable adaptability and performance. Common applications include:
1. Sealing in High-Temperature and High-Pressure Systems
Graphite packing excels in extreme environments, maintaining tight seals in equipment such as valves, pumps, and reactors that handle superheated steam, heat transfer oils, ammonia, hydrocarbons, and cryogenic fluids.
2. Corrosive Media Sealing
With outstanding chemical resistance, graphite packing withstands most corrosive substances—except strong oxidizers—making it ideal for the chemical, petrochemical, and pharmaceutical industries, where media leakage prevention is essential.
3. Replacement for Traditional Sealing Materials
In modern sealing systems, graphite packing and aramid fiber packing have become preferred alternatives to asbestos-based materials. They offer high strength, heat resistance, and wear resistance, making them suitable for handling abrasive fluids like steam, solvents, liquefied gases, and syrups.
4. Specialized Applications
Special formulations, such as high-water-based graphite packing, combine graphite with lubricated natural fibers (e.g., ramie fiber) for low-friction and corrosion-resistant performance. These are widely used in marine equipment, seawater systems, and low-pressure machinery such as ship propellers, hydraulic presses, and cold-water pumps.
Typical operating parameters:
- Temperature: ≤140°C
- pH range: 2–12
- Linear speed: up to 10 m/s
Performance Advantages of Graphite Packing
The widespread adoption of graphite packing can be attributed to its combination of thermal, chemical, and mechanical advantages, including:
1. Excellent Temperature Resistance
Graphite packing maintains structural integrity even at extreme temperatures. Its porosity and density remain stable across a wide thermal range, ensuring reliable sealing under fluctuating conditions.
2. Superior Chemical Stability
Except for strong oxidizers, graphite packing resists attack from most acids, bases, and salts—making it ideal for environments involving aggressive or corrosive media.
3. Outstanding Lubrication
Graphite’s natural lubricity minimizes friction and wear between moving parts. This not only enhances equipment efficiency but also significantly extends service life, especially in high-speed rotating machinery.
4. High Strength and Dimensional Stability
The inclusion of reinforcing fibers and metallic wires grants graphite packing high tensile strength and modulus, allowing it to retain shape and sealing effectiveness under heavy compressive loads and pressure variations.
Conclusion
As a high-performance sealing material, graphite packing offers an unparalleled balance of thermal resistance, corrosion protection, lubrication, and strength. Its unique composition and versatile structure enable it to perform reliably in the harshest industrial environments, ensuring equipment integrity and production safety.
With various types—dense crystalline, flake, and cryptocrystalline—graphite packing meets the diverse demands of modern industry. From power generation and petrochemicals to marine and chemical processing, it continues to play a vital role in maintaining system efficiency and leak-free operation.
